Nikon D7000 Review

Nikon D7000 Design

(Illustration courtesy Nikon USA)

The Nikon D7000 has a new body design that sits somewhere in between those of the previous D90 and D300s models, in terms of both control layout and features. The D7000’s body is nearly identical to that of the D90 in terms of size, and around half an inch less wide and tall than the D300s. Body-only, it weighs some 2.3 ounces (70g) more than the D90, but is still a significant 5.9 ounces (150g) lighter than the D300s. The D7000’s design combines both magnesium alloy and polycarbonate panels over a polycarbonate chassis, and includes an array of environmental seals for dust and water resistance. The top and rear body panels of the camera itself are magnesium alloy, while the front, side, and base panels are all polycarbonate. Nikon doesn’t specifically state how many seals the D7000 contains, but its marketing materials state that all joints and “various points” on the camera body have been sealed, and that the sealing has been “severely tested against moisture and dust”. The optionally available MB-D11 portrait / battery grip has magnesium alloy panels front and rear, and also includes a variety of environmental seals. Of particular note in this view, the Focus Mode selector now includes an AF-mode button at its center, a design which differs from both those of the D90 and D300s.

(Illustration courtesy Nikon USA)

As can be seen in the previous two views, front panel control placement on the D7000 is near-identical to that of the D90. A couple of notable differences between the two cameras can be found on the D7000’s base, however. The D90’s optional portrait / battery grip interfaced with the camera courtesy of a large dummy battery projection, where the D7000 does so via a proprietary connector that’s hidden under a soft rubber flap adjacent to the battery compartment door. This change also means that where the D90’s battery compartment door was removable, and could be stored in the grip when not in use, the D7000 has a fixed compartment door. The different approach means that if you want to swap both batteries in the D7000 you’ll first need to remove the grip, but it also makes the grip itself rather less bulky, and perhaps makes it a little quicker to attach and remove.

(Illustration courtesy Nikon USA)

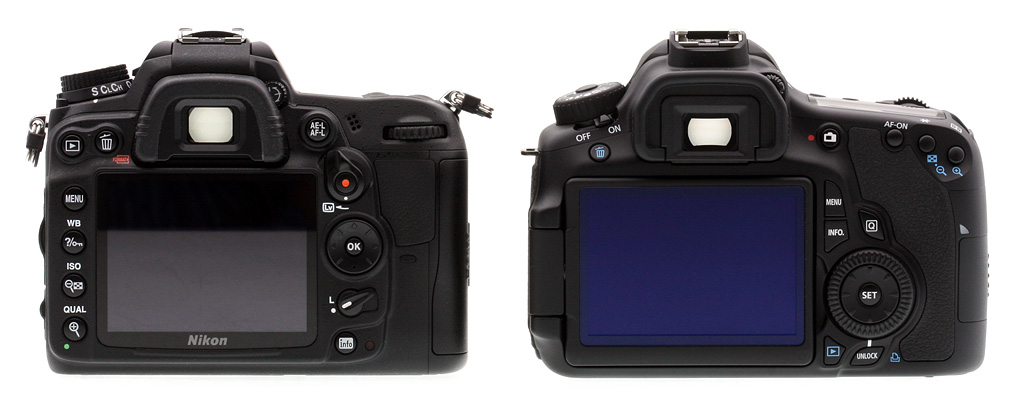

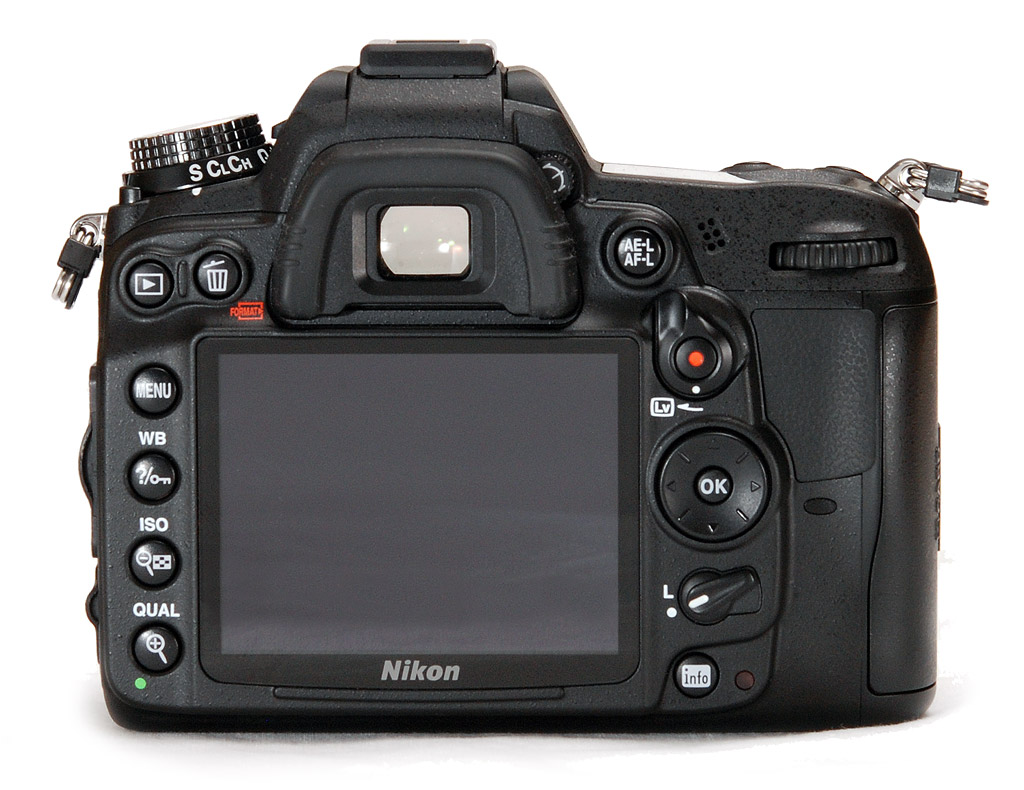

Several significant differences between the D7000 and its siblings can be seen from the camera’s rear. The D7000 features a traditional Mode dial as in the D90, but places this above a lockable release mode dial similar to that in the D300s. Also like the D300s, the D7000 places its Playback and Delete buttons side by side, just to the left of the viewfinder eyepiece. The column of buttons adjacent to the left of the LCD display are all dual-purpose, as in the D90, but with the playback button now relocated, there are only four buttons in the column. Unlike both the D90 and D300s, the D7000 features Nikon’s latest user interface design for live view and movie recording, which relies on a dedicated, spring-loaded switch to enable and disable live view, while a small button at the center of this switch conveniently starts and stops movie recording with a press of the thumb. It’s an intuitive design that provides quick access to live view and movie capture no matter what the camera’s current operating mode, and makes it relatively easy to avoid shaking the camera at the start and end of movie clips. It does, however, bring the potential for some confusion, given that the Mode dial position doesn’t necessarily correlate to the exposure variables one can adjust before or during movie capture.

(Illustration courtesy Nikon USA)

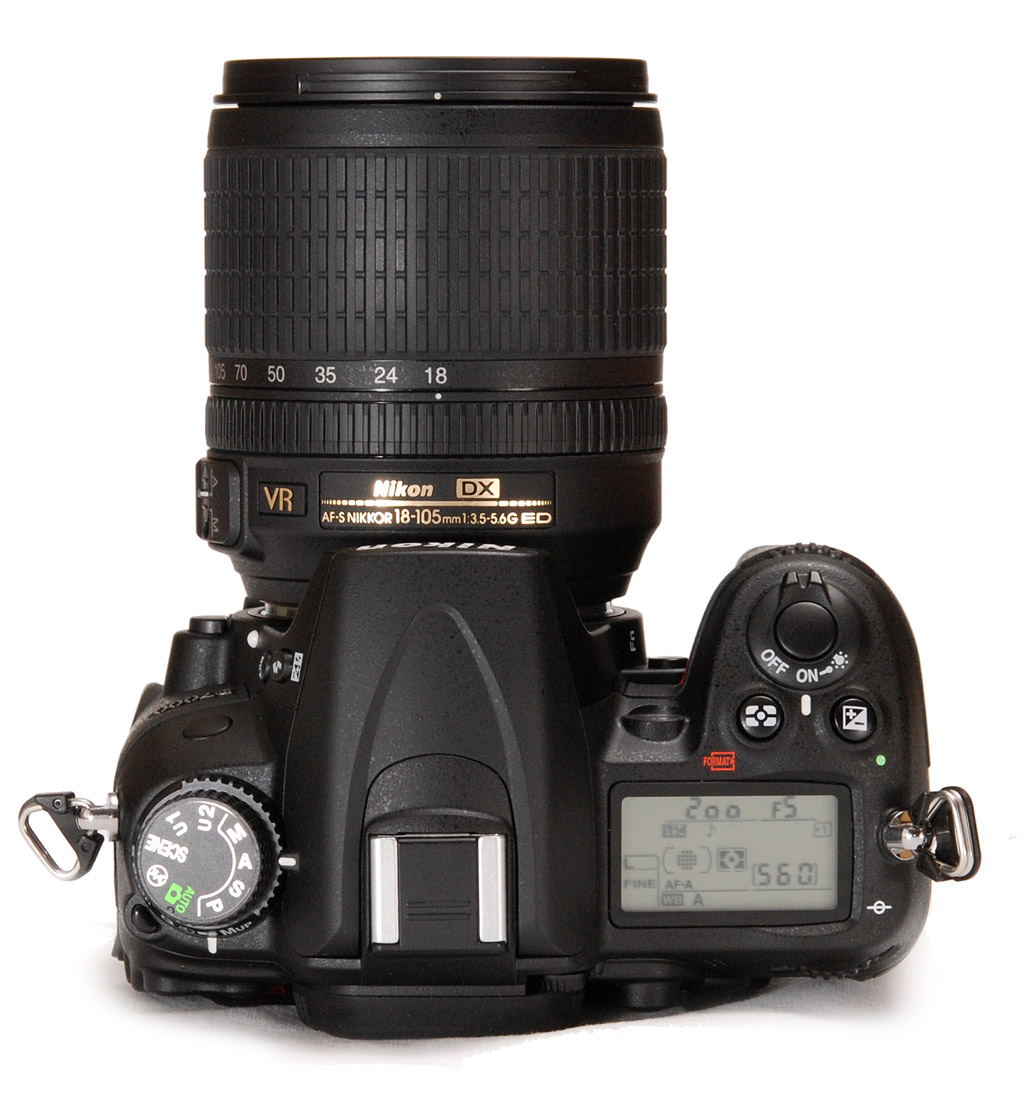

From the top, the D7000’s top panel layout is closest to that of the D300s, although as previously noted, it relies on a traditional Mode dial as in the D90. Hence, it replaces the Exposure Mode button from the D300s with a Metering Mode button as in the D90. Unlike the D90’s Mode dial, that in the D7000 combines all the camera’s Scene modes into a single Scene position, freeing up space for two User mode positions, and reducing Mode dial clutter significantly.

Nikon D7000 Operation

With its many buttons, knobs, and dials, the Nikon D7000 could look intimidating to the unseasoned SLR user. But to the experienced shooter, the Nikon D7000’s controls will quickly make this camera a photographer’s best friend. All key buttons for essential controls are on the Nikon D7000’s surface skin, and several of the buttons can be reprogrammed to meet your needs or personal shooting style. Several of the front-panel controls are positioned to fall right under your fingertips without moving your hands while shooting, making the camera extremely intuitive to use, once you’ve memorized the button locations. These include the Function, Depth-of-field Preview, and AF Mode buttons, and the Focus Mode lever. The functions of numerous controls can also be changed through the Custom Setting menu, allowing D7000 owners to tune the camera to their preferences.

Many functions can be changed using a button and the Main Command dial while looking at the Status LCD on the top deck, while several can be changed while looking at the viewfinder’s info LCD. Other items are changed by pressing the Menu key and using the navigation disk on the back of the D7000.

Nikon D7000 Top Panel Status LCD

As with most higher-end Nikon DSLRs, the top-panel data readout LCD communicates a lot of information about current camera settings, and is used in conjunction with the various buttons and Command dials to set many camera functions. You can also use the main LCD to adjust many of the same settings, but using the top LCD saves power and can be more convenient when the camera is below eye level. The info display in the optical viewfinder can also be used for some command, but lacks the level of detail provided by the top panel display. It’s also always active whenever the camera is on and not in sleep mode, so you don’t have to go into the menu system to make changes to the settings it supports. The panel is illuminated by a green backlight which is activated by a third, spring-loaded lamp position on the power switch. The illustrations below show the meaning of the various icons and readouts in this display.

Nikon D7000 Shooting Info Display

Like other recent Nikon DSLRs, the D7000 has the ability to display shooting info and settings on the main LCD. The main LCD is larger and in color, so some prefer to use it over the top LCD, at the expense of reduced battery life. It’s nice that Nikon gives you the choice of display type with the D7000. The rear LCD’s greater display area allows more information to be displayed, although it’s important to note that not all data elements from the top-panel readout are replicated here. Because it’s a full pixel-based display, it can also show greater detail, such as the differentiation between the available and starting AF points in Dynamic-Area AF mode.

The illustrations below show the meaning of the various icons and readouts available on the Shooting Display screen:

Nikon D7000 Virtual Horizon

A really neat feature of the D7000 first seen on the D3 is the virtual horizon gauge, activated from the Setup menu. The display remains active as long as certain buttons aren’t pressed (such as the shutter release). Sensors in the body are used to detect the orientation of the camera and a virtual horizon is displayed in realtime, similar to an aircraft instrument, though it only shows left/right tilt (or “roll”). This is useful for critical alignment of subjects such as buildings, the horizon, etc. The virtual horizon display works in both landscape and portrait orientations. Courtesy of Custom Settings f3 or f4, the electronic analog scale in the viewfinder can also be made to display the amount of tilt. The virtual horizon is also available during Live View mode as one of the overlay options via the “Info” button. In Live View mode, the display is smaller and mostly translucent, so as not to obscure the preview.

Nikon D7000 Playback mode

Playback mode is entered by pressing the playback button. The D7000’s playback mode provides a great deal of information about your pictures after you’ve shot them. A variety of up to nine different playback displays can be cycled through using the up/down arrows on the multi-selector, including image with file information and and focus point display, with highlight warning, with RGB / luminance histograms and white balance information, three screens with overlaid shooting and image parameter information (an additional GPS info screen is available when a GPS device was used when the image was captured), and an overview display with basic shooting data and luminance histogram. The screenshot animation at right shows the sequence when the down arrow is used.

As you’d expect, the Nikon D7000 offers a comprehensive RGB histogram display mode. Histogram displays are common on professional digital cameras (and many amateur models now), regarded as almost mandatory by many pros for evaluating exposure levels. A histogram is simply a graph of how many pixels there are in the image at each brightness level. The brightness is the horizontal axis, running from black at the left to white at the right. The height of the graph shows the relative number of pixels having each brightness level. This sort of display is very handy for determining under- or overexposure. Ideally, the histogram would stretch across the entire width of the display, using the full range of brightness values available. An underexposed image will have a histogram with all the data lumped on the left-hand side, with nothing reaching all the way to the right. Likewise, an overexposed image will have all the data lumped on the right hand side. Clipped highlights are shown by blinking any highlights that are saturated in any of the color channels. It does this by taking the nearly-white areas on the LCD and toggling them between white and black.

As with the Highlights display mode, the blinking highlights in the histogram display mode can also be displayed separately for each color channel by selecting R, G, or B in the RGB Histogram display mode. The screenshots at right show an example of where this might be useful: The bright, strongly colored lamp shade (deliberately shot with an incorrect white balance, to produce the strong hue) showed only minor lost detail in the screenshot above, looking at the RGB or luminance highlights, but the shot at right shows that the red channel is badly blown. This is quite common: It’s easy to lose detail in a strongly-colored object well before other, more neutral-colored highlights are lost.

Finally, the shot at right shows a nice feature that is we’re surprised isn’t more common: You can zoom into the image and pan around the magnified display, and the RGB histogram will change to show only the portion of the image that you’re looking at. In this mode, you lose the blinking highlights, but this strikes us as very useful for checking critical parts of the image, to see if you’ve held highlight or shadow detail in areas you really care about.

Of course the D7000 also lets you zoom out to quickly find and select images, or magnify them for closer inspection on its gorgeous 3-inch, 922K pixel LCD. You have the normal 4-, 9- or 72-image thumbnail displays or a calendar view available by pressing the thumbnail/zoom out button, and you can magnify them up to approximately 31x for large, 23x for medium or 15x for small images, using the zoom in button. Once magnified, you can scroll around the image using the multi-selector to examine critical detail and framing. When you zoom in or out on an image, a little navigation window pops up in the lower right corner of the display, showing a thumbnail of the image, with a yellow box indicating the currently-viewed area. Portrait-mode images can also be automatically rotated to match the camera’s current orientation, using the Rotate Tall option in the Playback menu. Of course, there are the usual options to protect or delete images or movies in Playback mode, as well. Since the D7000 offers dual memory card slots, the playback mode also allows the user to select only one card for review; it’s also possible to limit review to only data from a specific folder, or only data captured using the D7000 (but not other cameras).

Movies can be played by pressing the multi-selector’s center button, and during movie playback both the down arrow and OK button serve as a pause / resume control. The left and right arrows allow cuing during playback, with subsequent presses adjusting the speed to 2, 4, 8 or 16x. While paused, these same buttons allow cuing through the video one frame at a time. Also while paused, the Help / Protect button can be used to call up the Retouch menu, where you can opt to save the current frame as a still image, or to trim off everything before or after the current point, with the result saved as a new file. Movies shorter than two seconds in length cannot be edited in-camera.

To return the D7000 to shooting mode, simply press the playback button again, or half-press the shutter button.

Nikon D7000 Optics

Kit Lens

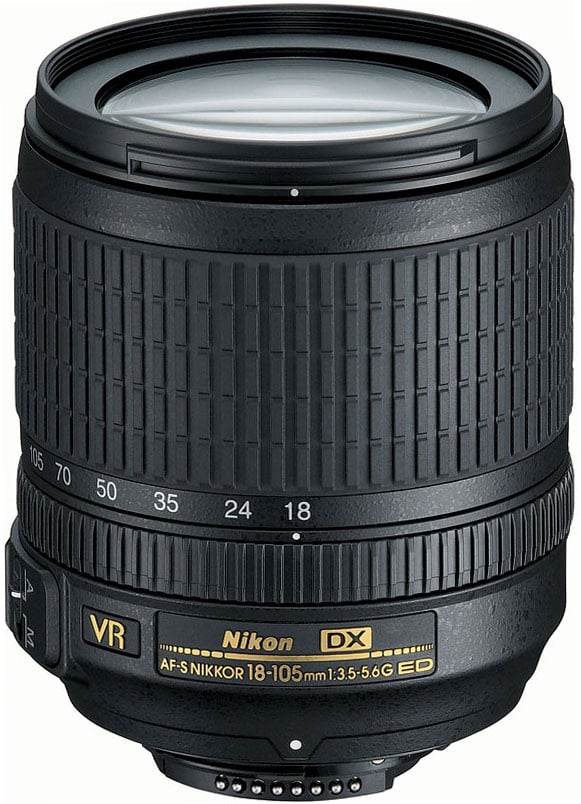

The Nikon D7000 is sold body-only, or bundled with the Nikkor AF-S DX 18-105mm f/3.5-5.6 G ED VR 5.8x zoom lens. Optical construction consists of 15 elements in 11 groups with one element using ED glass and one hybrid aspheric surface. (A hybrid aspheric lens consists of a normal spherical-section glass lens with a thin plastic layer bonded to it that provides a molded aspheric surface. They provide the benefits of aspheric surfaces (reduced distortion and aberration) at lower cost than all-glass aspherics.) Maximum aperture ranges from f/3.5-5.6 from wide angle to tele, while minimum aperture ranges from f/22-36.

The long list of alphabetic jargon in the lens’s name deserves some translation for the non-Nikonians who might be reading this, so here it is:

• AF-S – “Silent Wave” (SWM) motor for fast, quiet focusing. This design also lets you adjust focus manually after the autofocus system has achieved focus, handy for manually tweaking focus to your liking in tricky situations.
• DX – designed to mate with Nikon’s DSLRs, smaller and lighter because its image circle doesn’t have to cover the full 35mmm film plane.
• 18-105mm – A fairly wide zoom range, 5.8x from wide to tele, equivalent to a 27-157.5mm lens on a 35mm camera.
• f/3.5-5.6 – A fairly average maximum aperture range, typical of most of Nikon’s kit lenses.
• G – It has a CPU so it will work with Nikon’s 3D Color Matrix Metering II system. The G also means no aperture ring, you set the aperture only through the camera’s controls. Speaking of aperture, the diaphragm in this lens is a 7-blade rounded-opening design, for nice round catchlights and more appealing bokeh. (A more natural blur for out-of-focus objects.)
• ED – Uses Extraordinary Dispersion glass for better control of distortion, astigmatism, and chromatic aberration. As noted, there’s also one aspheric surface, down from no fewer than 7 in the previous 18-135mm kit optic.

The lens focuses quite closely, to a maximum repro ratio of 0.2x (1:5 macro), and accepts 67mm filters. This is a slightly reduced macro capability over the previous 18-135mm, which could get to 0.24x. It’s nice that the lens takes a 67mm filter, that seems to be a fairly common size on Nikon’s lenses, so you’ll have a better chance of using the same filters on multiple lenses. As its VR designation indicates, this lens also incorporates Nikon’s excellent Vibration Reduction (Image Stabilization) technology. The overall dimensions of the lens are 76mm diameter by 89mm long, and it weighs in at 420 grams. This lens adds about $300 to the price of the body when purchased as a kit, but costs about $400 when purchased alone (though you should be able to find it on sale for less these days).

The new kit lens felt very nice in the hand. It zoomed smoothly, focused quickly, and construction was solid and tight. Optical performance was quite good, and VR is a welcome addition. Along with the test results presented below, see our full review of the Nikkor 18-105mm VR lens on our sister site, SLRgear.com.

Lens Compatibility

Like other Nikon SLRs, the D7000 accommodates a wide range of Nikkor lenses, via the standard Nikon “F” lens mount. Unlike the Nikon D3100 and D5000 consumer models, however (as well as the D40, D40X, D60 and D3000 before them), the D7000’s lens mount includes both a mechanical AF coupling for older “screw-drive” autofocus lenses, as well as AF electrical contacts for the latest AF-IF or AF-S Nikkor lenses with internal focus motors.

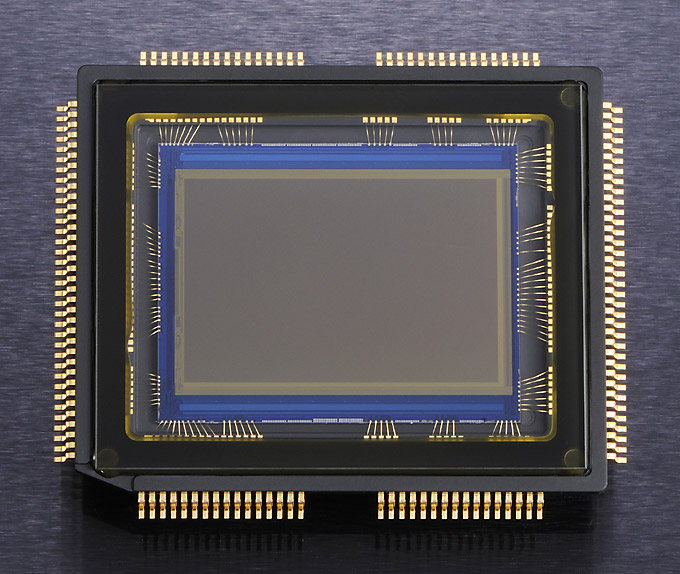

The Nikon D7000 has an APS-C sized sensor which is smaller than 35mm film, so it’s designed to work with “DX” lenses as well as full-frame “FX” lenses. As mentioned previously, DX lenses tend to be smaller and lighter than full-frame models with the same focal length and maximum aperture. The sub-frame sensor on the Nikon D7000 means that it has a smaller angle of view (by a factor of 1/1.5x) than a full-frame camera with any given lens. While most properly called a “crop factor,” the 1.5x ratio is most commonly referred to as the “focal length multiplier,” since that’s how it works in practice: Any lens used on the Nikon D7000 will have the same field of view as one with a 1.5x greater focal length will when attached to a 35mm camera. For example, a 100mm lens on the D7000 will show about the same field of view as a 150mm lens on a camera with a 35mm frame size.

The Nikon D7000’s lens mount includes an AI aperture ring connector, a little metal vane located just outside the lens mount flange (at about 1 o’clock), that interfaces with old AI Nikkor manual focus lenses. This engages with the aperture ring on AI-style Nikkor lenses, and lets the D7000 support aperture-priority metering mode and provides manual-exposure metering with them. Lower models including the D90 do not have this feature, so the D7000 is compatible with a wider range of older Nikkor lenses than its lesser siblings.

With few exceptions, you can use the Nikon D7000 with any F-mount Nikkor lens made since 1977. See the table and notes below for detailed lens compatibility information extracted from the D7000 User’s Manual (courtesy of Nikon USA):

Nikon D7000 Autofocus System

Phase-detect AF. Autofocus is an area that’s received significant attention from the Nikon D7000’s designers. The company has developed a new Multi-CAM 4800DX autofocus sensor, which includes 39 AF points, including nine cross-type sensors at the center of the image frame, operable with every autofocus Nikkor lens. That’s 12 fewer AF points than the D300S, but a major improvement over the D90’s 11 point system. The 39 focus points cover much of the image frame (see the Viewfinder tab for the AF array), and the Nikon D7000 includes 3D tracking capability that follows moving subjects from point to point as they traverse the frame with the help of the 2,016-pixel RGB sensor (more about that below). For manual point selection, when a 39-point system might prove overly complex, it’s possible to restrict the number of manually selectable points to a subset of 11 points throughout the frame. Nikon has also improved AF control in the D7000, with a new button positioned centrally in the Focus Mode switch used to select the AF point in concert with the camera’s control dials to select autofocus mode, active points, etc. Detection range for the D7000’s AF system is -1 to +19 EV (ISO 100, 68°F / 20°C).

Focus modes. The Nikon D7000 lets you choose either auto or manual focus via the small Focus Mode switch on the front of the camera, next to the lens. Setting the switch to “M” puts the camera into manual focus mode, “AF” places it in autofocus mode. Single AF (AF-S), Continuous AF (AF-C), and Auto-switching AF (AF-A) options are selected by pressing the button in the center of the switch and rotating the rear command dial, to cycle through the choices. The control panel and viewfinder display the current mode as it’s being adjusted. Single AF simply means that the camera sets focus only once, when the Shutter button is first pressed halfway, and is best for stationary objects. Continuous AF means that the camera continuously adjusts the focus with predictive focus tracking, as long as the Shutter button is halfway pressed, and is best for moving objects. In AF Auto mode, the camera begins focus operations in Single AF mode, but switches to Continuous AF if it detects motion within the active AF area.

Like the D300S, Release or Focus Priority can be selected for both AF-S and AF-C modes via a Custom menu a1 and a2 settings. In Focus Priority mode (the default for AF-S mode), the shutter won’t release unless the lens is focused, or the lens itself is set to manual focus. However, in Release Priority mode (the default for AF-C mode), the camera will fire regardless of the state of focus. If you want to be sure that the camera is focused when you snap the picture, use Focus Priority mode. Use Release Priority for moving subjects, and/or times when the instant of shutter release is more important to you than sharp focus. A “Focus Tracking with Lock-On” option in Custom menu a3 allows you to adjust how long the camera waits before adjusting focus if the distance to subject changes abruptly, for example by something passing between the camera and the subject. Options range from 1 second (Short) to 5 seconds (Long) in 1 second steps, along with an Off option.

AF-area modes. Pressing the Focus Mode button and rotating the front dial allows you select the AF Area mode. Available options are: Single-point AF, 9-point Dynamic-area AF, 21-point Dynamic-area AF, 39-point Dynamic-area AF, 3D-tracking and Auto-area AF modes. Single Area AF simply means that the camera judges focus based on one part of the subject, and the user can manually select the AF point by pressing the arrow keys. The other modes are rather more complex, offering the ability to automatically track moving subjects, determine scene types and even recognize the location of human subjects in a scene.

Dynamic-area AF is relevant only when in Continuous-servo AF mode, with its behavior mirroring that of Single-point AF when in Single-servo mode. Dynamic-area AF employs all or a subset of the autofocus points, though you can still manually select the starting point for AF operation. When Dynamic-area focusing is enabled, the camera first focuses on the subject in the primary focus area. When the subject moves to a different AF area, the camera shifts the focus to “follow” the subject. This is great for irregularly moving subjects. (Sports and kids come to mind.) As well as allowing tracking across all 39 AF points, at the user’s option the camera can limit subject tracking to only a small area of 9 or 21 points including the user-selected starting point. As noted, you can manually select different starting points, and the cluster of Dynamic-area points will follow your selection. As an aid to users transitioning from the D90’s system, there’s also an option that lets you choose a single active point from a selection of 11, roughly matching the AF point layout of the D90 and some older models.

The final point selection option in Dynamic-area AF is the 3D Tracking mode, which allows the camera to use the 2,016-element RGB exposure/white balance sensor to aid in subject tracking. This sensor has been enhanced over the D300S’s 1,005 pixel version and is used by Nikon’s excellent 3D Matrix Metering system. In matrix metering, patterns of tone and color are used as an index into a large database of “reference scenes” stored in the camera’s memory. The camera doesn’t directly understand it’s snapping a portrait shot, but when it sees a human-shaped blob against a different color background, its scene indexing tells it that it should try to get the exposure of the blob correct, even if it means the overall scene brightness would come out low.

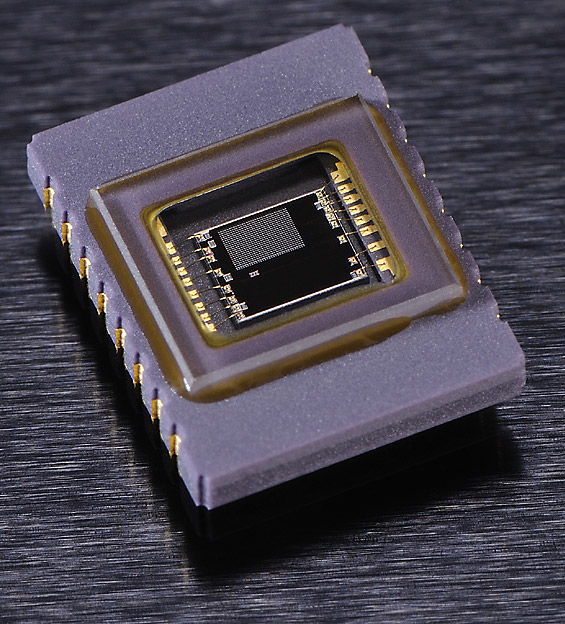

Starting with the D3 and the D300, the Nikon engineers have used the data from the RGB exposure sensor to help guide the camera’s autofocus decisions. While the RGB sensor provides no distance information, it has much more resolution than even the large array of AF points on the Multi-CAM4800 AF sensor. The 2,016 element RGB sensor also captures both tone and color information, making it easier to discern where objects are in the field of view and how they’re moving.

With this RGB-assisted AF approach, when an AF point initially acquires a lock on a particular subject, the camera immediately notes the pattern of light and color found at the corresponding point on the RGB array. Then, as the subject or camera moves, the camera can track the light/color pattern corresponding to the subject across the face of the RGB array. This provides much finer-grained position information than could ever be obtained from the sparse AF array. The RGB sensor doesn’t provide any distance information, but by more precisely tracking subject information, it permits a much surer hand-off of the subject between AF points.

In Auto-area AF mode, the camera chooses which AF points to use automatically, with the selected points shown briefly in the viewfinder for reference when in Single-servo AF mode. The camera automatically determines the subject type, and bases AF point selection on its decision of the main subject in the scene. When using either G- or D-type lenses, this becomes rather more intelligent, with the camera able to use its 2,016-pixel RGB sensor to distinguish human subjects from the background. This allows the D7000 to automatically select the focus points located over your human subject(s).

Changing AF points & locking focus. In any of the AF modes, you can change the primary focus area by unlocking the focus area selector (the Four-Way Arrow pad on the back panel) and then shifting the focus area using the up, down, right, or left arrow directions on the control rocker. You can lock the focus area selection by turning the switch below the control rocker back to the lock position. By default, the Nikon D7000 does not “wrap” the focus area selector as you scroll between focus areas. Custom Setting a5 lets you opt for a “wrap” function. What this means is that if you press the right arrow key again, after the right focus area is already selected, the selection will immediately jump to the left focus area. The same thing happens when moving the focus area selection vertically as well.

There are several methods by which you can lock focus on the D7000. The first is to half-press the Shutter button to lock the focus, placing your subject in the selected focus area, halfway pressing the Shutter button, then realigning the composition and firing the shutter. Alternatively, when using Single Servo AF, you can press the AF-L/AE-L button (or through Custom Function f3, the Function button, or f4, the Preview button) to lock focus, even if the Shutter button is released. This lets you recompose the photograph without keeping your finger on the Shutter button, but on the AE-L/AF-L button instead. (Reducing the chance that you’ll accidentally trip the shutter when you don’t intend to.) The D7000 has no dedicated AF-ON button like the D300S, but the AE-L/AF-L can be programmed to act as one. In this case, the shutter button will not perform autofocus.

Nikon D7000 AF “Fine Tuning”

The Nikon D7000 also supports AF fine-tuning to address back- or front-focusing lens issues, a feature previously only found on higher-end models such as the D300 and up. You can register up to 12 different lens “types” with the camera (more on “types” in a moment), and make micro-adjustments to the AF system for each, across a range of +/-20 (arbitrary) increments.

What does lens “type” mean here? Basically, a lens “type” is a lens model. For instance, if you have a 70-200mm f/2.8 and a 100mm f/2.8 Micro, the camera would recognize each lens when it was attached to the camera, and automatically load the appropriate fine-tuning setting. If you had two 70-200mm f/2.8s, though, the camera would have no way to distinguish between them, and would load the same fine-tuning settings for either one.

While there may be some photographers (particularly pros) who have more than 12 lenses in their kits, the 12-lens “fine-tuning library” will cover the needs of the vast majority of D7000 users. We’ve found that this system also recognizes lens types for third-party lenses as well, so its utility extends to essentially any CPU-containing AF lens the Nikon D7000 can work with.

The lens-based AF tuning function can also be disabled altogether, if you want to revert to the standard focus tuning for all lenses. It should be noted that AF fine tuning only affects phase detection autofocusing, having no effect over contrast detection AF in Live View mode. (It’s also an option best left disabled unless you know you have a front- or back-focusing issue with one or more of your lenses, because the system can also be used to manually introduce a focusing error, perhaps making it impossible to focus to infinity, or the ordinary macro focusing distance of a lens.)

AF fine-tuning has by now become a fairly standard feature on higher-end SLRs. That doesn’t diminish the fact that it’s a huge step forward in focus accuracy, though, giving photographers the tools they need to maintain and calibrate their own equipment.

Nikon D7000 AF Assist

The Nikon D7000 has a bright, dedicated autofocus-assist lamp, which also doubles as a self-timer lamp. We prefer this setup over using the flash strobe for AF assist, as this totally decouples autofocusing from flash operation. (The flash does not need to be raised or active.) The AF assist lamp illuminates automatically in poor lighting conditions, and can be disabled via a Custom menu setting a7. The effective range is specified by Nikon as 0.5-3m or 1.7 -9.9 ft.

Nikon D7000 Live View Focusing Options

In Live View mode, the Nikon D7000 offers only contrast-detection autofocus (The D300/D300S gives you a choice between phase-detection and contrast-detection in Live View, but doesn’t offer the more advanced contrast-detection modes or Full-time servo mode mentioned below.) There are three focus modes in Live View: Single-servo AF (AF-S), Full-time servo AF (AF-F) and manual focus (MF). Of note is AF-F mode which is similar to AF-C mode when using the optical viewfinder (though you don’t have to half-press the shutter button), as the D7000 is only the second time a Nikon SLR offers continuous full-time autofocus in Live View and Movie modes. (The D3100 was the first.) There are four AF-area modes in Live View mode: Face-priority AF, Wide-area AF, Normal-area AF and Subject-tracking AF. Face-priority is useful for portraits. Up to 35 faces can be detected and when more than one face is present, the D7000 will select the closest one. You can also manually select which face to focus on using the multi-selector. Wide-area is recommended for landscapes and other non-portrait shots. Normal-area offers a smaller focusing area, and is useful for focusing on a small area of the frame. With either Wide- or Normal-area, you can move the active focus area with the multi-selector. Using a tripod is recommended. Subject-tracking attempts to track a selected subject as it moves through the frame. You position the focus point over your intended subject and press the OK button to begin tracking. To end tracking, press the OK button again. Note that Subject-tracking AF may be unable to track a subject if it’s too small, moves too quickly, is similar in color to the background, changes sizes, or if the subject and background are very bright or dark, etc.

Nikon D7000 Anti-Dust Technology

To help combat dust particles that can enter the camera when changing lenses, the Nikon D7000 includes an ultrasonic dust cleaning system to automatically vibrate the low-pass filter over the sensor each time the camera is turned on or off (programmable). There is also an immediate mode where cleaning takes place on demand, and of course, there’s a manual cleaning mode, where the camera lifts the mirror and opens the shutter, allowing access to the low pass filter with a blower or other cleaning device. You can also capture an “Image Dust Off Reference Photo,” and use the optional Capture NX2 software to remove dust shadows from your images via post-processing.

While ultrasonic dust removal systems can increase the interval between manual cleanings, it bears noting that no such system can completely eliminate the need to occasionally clean the sensor manually. Copper Hill Images is an advertiser of ours, but we’d recommend their wet/dry cleaning system even if they weren’t (it’s what we use in our own lab): See the Copper Hill website for details.

Kit Lens Test Results

Zoom
Very good performance with the 18-105mm VR kit lens.

18mm, f/8	105mm, f/8

The Nikon D7000 is available with a Nikkor AF-S DX 18-105mm f/3.5-5.6G ED VR (Vibration Reduction) lens, which has a better-than-average zoom ratio of about 5.8x for a kit lens. Details are pretty good across the frame at full wide-angle, with minimal corner blurring. There are low levels of coma distortion in the leaves at the corners, and chromatic aberration isn’t an issue because most of it is removed by the D7000’s image processor (see below). Results at full telephoto are also quite good, showing strong detail across most of the frame with some minor softness in extreme corners. (These shots were both taken at f/8. See below for how the lens performs at maximum aperture.) Overall, a very good performance for a kit lens, and the built-in Vibration Reduction (Nikon’s term for optical image stabilization) will come in handy for hand-held shots in low light.

Macro
A larger-than-average macro area with the kit lens, with soft detail overall. Flash throttles down pretty well.

Macro with 18-105mm Kit Lens 105mm, f/5.6	Macro with Flash 105mm, f/5.6

The Nikon D7000 captured a larger-than-average macro area with the standard 18-105mm kit lens, measuring 4.18 x 2.77 inches (106 x 70 millimeters). Detail was somewhat soft, and there was some additional softening in the corners. (Most lenses have some softening in the corners at macro distances.) Some vignetting is also noticeable in the extreme corners. The Nikon D7000’s flash throttled down for the macro area pretty well, though.

Geometric Distortion
High levels of geometric distortion at wide-angle and telephoto ends with the 18-105mm kit lens.

Barrel distortion is 1.1 percent at 18mm

Pincushion distortion is 0.6% at 105mm

The Nikon D7000’s 18-105mm kit lens produced about 1.1 percent barrel distortion at wide-angle, which is higher than average and noticeable in its images. At the telephoto end, there was about 0.6% of pincushion distortion which is also higher than average and noticeable. This is the tendency for the lens to bend straight lines outward (like
a barrel — usually at wide-angle) or inward (like a pincushion — usually
at telephoto).

Auto Distortion Control
Low geometric distortion when Auto Distortion Control is enabled.

Barrel distortion at 18mm is 0.5 percent

Pincushion distortion at 105mm is 0.1 percent

The Nikon D7000 offers an Auto Distortion Control feature to reduce geometric distortion automatically. As you can see it worked quite well with the 18-105mm lens, reducing barrel distortion at wide-angle to 0.5%, and pincushion at telephoto to 0.1 percent. Since this option is database driven, it’s only available for Nikkor D and G-type lenses with certain optics such as Fisheye and Perspective Control lenses excepted. Auto Distortion Control is Off by default. You can also apply Auto or Manual Distortion Control to JPEGs after the fact, in the Retouch menu. Manual mode works with images from any lens.

Chromatic Aberration and Corner Sharpness
Very low C.A. in JPEGs, higher in uncorrected RAW files. Some blurring in the corners of the frame at wide-angle and telephoto with the kit lens wide-open.

Wide, f/3.5: Lower right C.A.: Very low Softness: Slightly soft	Wide, f/3.5: Center C.A.: Very low Softness: Sharp
Tele, f/5.6: Lower left C.A.: Very low Softness: Moderate blurring	Tele, f/5.6: Center C.A.: Very low Softness: Slightly soft

Chromatic Aberration. Chromatic aberration is quite low at the full wide-angle setting of the Nikon D7000’s 18-105mm VR kit lens. At telephoto, chromatic aberration is even lower and hardly detectable. (This distortion is visible as a slight colored fringe around the objects at the edges of the field of view on the resolution target.) The Nikon D7000’s image processor does a good job at automatically removing most C.A. from JPEGs, and it works with any lens. (See below for crops from uncorrected RAW files.)

Corner Sharpness. The Nikon D7000’s 18-105mm VR kit lens produced slightly soft corners of the frame at full wide-angle. The lower right corner was a touch softer than the other corners, and the softness didn’t extend very far into the frame. The center was reasonably sharp. At full telephoto, the left hand side corners were softer than the right. The lower left corner was the softest, with some softness extending fairly far into the frame, but the lens was softer overall at telephoto than at wide-angle. There’s also a little bit of vignetting (corner shading) at both ends of the zoom, as indicated by the darker corner crops. Still, these are better-than-average results for a kit lens, considering the zoom ratio and that the aperture was wide-open for these shots. (Corner sharpness and vignetting typically improve as the lens is stopped-down from maximum aperture.)

Uncorrected RAW
Much higher levels of C.A. at wide-angle and telephoto in RAW files.

Wide: Lower right C.A.: Moderately high Softness: Moderate blurring	Wide: Center C.A.: Very low Softness: Sharp
Tele: Lower left C.A.: Moderately high Softness: Moderate blurring	Tele: Center C.A.: Very low Softness: Slightly soft

As you can see from the crops above, levels of chromatic aberration in the corners are much higher in uncorrected RAW files, though still reasonable. Nikon has been automatically reducing C.A. in its JPEGs for a while now in their DSLRs, so this is no surprise. (Note that these crops are unsharpened, so they appear softer than the camera JPEGs.)

The images above were taken from our standardized test shots. For a
collection of more pictorial photos, see our
Nikon D7000 Photo Gallery
.

Nikon D7000 Exposure

Exposure Modes. Although it’s a prosumer camera that’s clearly aimed at reasonably experienced photographers, the Nikon D7000 offers not only the traditional selection of Programmed Auto, Shutter Priority, Aperture Priority, and Manual modes, but also a Full Auto mode, a Flash Off Auto mode, a generous selection of Scene modes that help beginners capture the photos they’re looking for without needing to understand the complexities behind the process, and two User modes (U1 and U2) that allow the photographer to save groups of settings for later recall. Among other settings, when you store a User mode, you save the camera’s current exposure mode, and so these simply mirror one of the other available exposure modes (including scene modes). In Shutter Priority and Manual modes, shutter speeds from 1/8,000 to 30 seconds are available in 1/3 EV steps. The Manual mode also adds a Bulb setting for manually timed exposures whose length is limited only by available battery power, and an X-sync setting that locks the shutter speed at 1/250th second.

A very nice touch that’s common to other Nikon DSLRs is that, while in Program AE mode, you can rotate the Main Command dial to select different combinations of aperture and shutter speed settings than those normally chosen by the autoexposure system. (That is, if the automatic program would have chosen 1/125 second and f/5.6, you could instead direct the camera to use 1/60 at f/8 or 1/30 at f/11, to get greater depth of field.) Nikon calls this Flexible Program, and photographers familiar with other brands may know it as Program Shift. It’s a very handy option for those times when you need some measure of increased control, but still want the camera to do most of the work for you. We personally use this capability more than Aperture- or Shutter-priority metering in our own shooting. The Nikon D7000 also allows the step size used for aperture, shutter speed, ISO sensitivity, exposure compensation and exposure bracketing to be set to the user’s preference of either 1/3 or 1/2 or 1EV steps. If you generally want fine-grained control over shutter speed and aperture, but find yourself occasionally wanting to make quicker adjustments, the camera can be set using Custom Setting f3 to temporarily use a 1EV step size for these variables while the Function button is held down.

An interesting feature when using Manual exposure mode is the electronic analog exposure display visible in the optical viewfinder data readout. This shows the amount the camera thinks an image will be over- or underexposed, based on the settings you have selected, and helps you find the best exposure for the subject.

The Scene modes, meanwhile, are all accessed through a single position on the Mode dial, with the Main Command dial used to select between available scene types, which include Portrait, Child, Landscape, Sports, Close Up, Night Landscape, Night Portrait, Party / Indoor, Beach / Snow, Dusk / Dawn, Sunset, Pet Portrait, Candlelight, Autumn Colors, Blossom, Food, Silhouette, Low Key, and High Key. Although an information screen briefly pops up on the rear-panel LCD when you change scene modes, it doesn’t go out of its way to help the photographer learn, with only a limited number of settings listed beneath the name of the scene mode, with most of the settings shown being identical in all scene modes. The majority of the selection screen is taken up by an animation of a dial turning as the scene types are changed, and a small thumbnail showing an example of the current scene type. The help pages for each scene mode likewise offer only the briefest of descriptions, with the Candelight mode’s terse “For candlelit scenes.” being one such example. With that said, you do at least see the shutter speed and aperture chosen by the camera while the shutter button is half pressed (and in Live View mode, the ISO sensitivity), while quite a few other settings can be confirmed by looking at the LCD info display, or the information display that can be enabled on the rear panel LCD, so photographers who want to learn from the scene modes can do so — the information just isn’t provided in quite as direct a manner as it could be.

Exposure Metering. Nikon has one of the most sophisticated and flexible metering systems currently on the market, and in the case of the Nikon D7000, its metering sensor covers a wide area of the frame with a 2,016-pixel RGB array. Like most SLRs, there are three main metering modes on the Nikon D7000: Matrix, Center-weighted, and Spot metering. Where Nikon’s system differs is in the capability of these modes. Nikon’s matrix metering — the default option on the D7000 — is called 3D Color Matrix Metering II, and takes into account not only subject brightness and contrast, but also subject and overall scene color, as well as subject distance information from the lens (when using type G or D lenses). This information is then compared against an in-camera database of over 30,000 different scene types, before the optimal exposure for the scene is calculated.

By default, the Nikon D7000’s Center-Weighted metering mode gives a greater weight to an 8mm diameter circle in the center of the frame, although this can be changed with Custom Setting b4 to use either a 6mm, 10mm or 13mm spot, or to average the entire frame. Finally, Spot meters a 3.5mm diameter circle (about 2.5% of the frame) centered on the active focus area, unless you’re using a non-CPU lens or Auto-area AF, in which case the D7000 behaves like most DSLRs in only metering the very center of the frame in Spot metering mode.

An even more unusual feature of the Nikon D7000 comes courtesy of Custom Setting b5, which allows fine-tuning of the camera’s metering system within a range of +/-1EV in extremely fine 1/6 EV steps. Three values can be set, allowing you to fine-tune Matrix, Center-weighted and Spot metering separately. This means that if you feel the camera to be consistently under- or over-exposing scenes, you should be able to pull it back towards your preferred exposure without needing to dial in exposure compensation for most images. Another similarly useful feature for tuning the D7000 to your tastes is Custom Setting c2, which allows the user to select how long the camera’s metering system should be powered on during a period of inactivity. This lets you balance battery life against convenience, within a nine-step range from a miserly four seconds to a spendthrift 30 minutes, as well as an option to leave the metering system powered on at all times. Note that when running on A/C power, the metering system remains powered on all the time, for convenience’s sake.

It’s important to note that 3D Color Matrix Metering II does rely on the use of a Type-G or -D lens. With other CPU lenses, the D7000 falls back to Color Matrix Metering II, which doesn’t take account of distance information in exposure calculations. Non-CPU lenses can use Color Matrix Metering if the focal length and maximum aperture are manually specified, but otherwise fall back to Center-weighted metering. The 2,016-pixel RGB sensor also serves to ascertain automatic white-balance, and provides assistance for focus tracking when the subject leaves the AF sensor area. Metering range is specified at 0 to 20 EV in Matrix or Center-Weighted, and 2 to 20 EV in Spot metering mode.

Exposure Lock. Ordinarily, the AE-L/AF-L button locks both exposure and autofocus, useful for off-center subjects in tricky lighting. Alternatively, it can be programmed to lock only exposure, or only focus, via the custom menu. You can also program the button to toggle the exposure lock on and off, rather than requiring the button to be held. In addition, you can program the camera to trigger autofocus operation while the button is held in, or to toggle a flash value lock when using the built-in flash, or one of six external flash strobes — the SB-900, SB-800, SB-700, SB-600, SB-400, or SB-R200.

Exposure Compensation. Exposure compensation on the Nikon D7000 is adjustable from -5 to +5 exposure equivalents (EV) in 1/3 or 1/2 EV step increments, and is controllable in Program, Aperture-priority, or Shutter-priority modes. Note that in Manual exposure mode, the EV button doesn’t actually vary the exposure – it only biases the electronic analog exposure display that’s shown in the optical viewfinder data readout. The Auto Bracketing feature on the Nikon D7000 can capture either two or three sequential shots of the same subject with varying exposure values. Exposure settings for bracketing can vary from -2 to +2 EV, with step sizes of 1/3, 1/2, 2/3, 1, or 2 EV units, and are additive to the current exposure compensation value. That is to say, if you have the camera set with +5 EV exposure compensation, and you then bracket three frames with a 2 EV step size, it’s possible for one frame to stray as far as +7 EV from the originally metered exposure. When shooting only two bracketed frames, you can select the extra frame to be shot either above or below the metered value.

Through Custom Setting e6, you can change the order in which bracketed shots are captured. By default, the metered exposure is captured first, then the shots under and over the metered exposure. The alternative is to capture the shots in order from under, metered, then over the metered value. Custom Setting e5 allows you to designate whether the bracketing sequence adjusts the ambient and/or flash exposure, white balance, or Active D-Lighting. When bracketing white balance, which is not available for Raw or Raw+JPEG shooting, note that the shutter is tripped only once and the camera then saves the bracketed exposures from the same source data. For two frame ADL bracketing, one frame has ADL disabled, and the other uses Auto ADL. For three shots, the camera brackets with ADL Off, Normal, and High.

ISO Sensitivity. The Nikon D7000’s normal ISO ranges from 100 to 6,400 equivalents, and can be extended up to ISO 25,600 equivalent (Hi 2). By default, ISO is adjustable in 1/3 EV steps (100, 125, 160, 200, 250, 320, 400, 500, 640, 800, etc.). Through Custom Setting b1, the D7000 can be set to allow sensitivity adjustment in 1/2 EV steps (100, 140, 200, 280, 400, 560, 800, etc.). Nikon’s excellent Auto ISO feature is carried over as well, which allows you to set both the upper ISO limit (from ISO 200 to 25,600 / Hi 2) as well as the minimum shutter speed (selectable from 1s to 1/4,000s) required before ISO is increased automatically.

The menu design does have one slight quirk, though, which we’ve commented on previously in our D3100 review. When you’re shooting in Program, Priority or Manual modes, you’ll notice a greyed-out Auto option at the top of the list of ISO sensitivities, which no amount of fiddling with camera settings will activate. That’s because this option is available only when shooting in Auto, Flash Off Auto, or Scene modes — in which case the Auto ISO sensitivity control option is instead greyed out. The two options are completely separate and accessible only in their correct exposure modes, but might cause a newcomer to Nikon’s interface to believe that Auto mode wasn’t actually enabled, when in fact it is. Even with Auto ISO set, you still manually choose an ISO sensitivity, and this simply acts as a starting point for the camera to raise if needed. Shots where the ISO sensitivity was automatically raised are indicated in playback mode, with the automatically chosen sensitivity listed in red.

White Balance. The Nikon D7000 offers quite a range of white balance settings. There are two Auto modes: Auto 1 operates normally, while Auto 2 is similar to Pentax’s CTE (Color Temperature Enhancement) mode, and adjusts white balance automatically, but with a bias towards a warm result. There are also six presets consisting of Incandescent, Fluorescent, Direct Sunlight, Flash, Cloudy, and Shade, a direct color temperature setting (2,500 to 10,000K), and a manual mode where white-balance is determined from a white or grey card or copied from an existing image. The Fluorescent preset has seven sub-settings consisting of Sodium Vapor (2,700K), Warm-white (3,000K), White (3,700K), Cool-white (4,200K), Day White (5,000K), Daylight (6,500K), and High Temperature Mercury Vapor (7,200K). The manual setting allows five custom white-balance measurements to be stored, and each preset can be fine-tuned and given a 36-character alphanumeric comment (including both upper and lower case, and a selection of punctuations marks, all entered through an on-screen keyboard).

As with a number of other high-end SLRs these days, all the D7000’s white balance presets and manual settings except for the direct color temperature settings are adjustable via a 2D fine-tuning grid display. The Nikon D7000 also supports White Balance bracketing, where either two or three frames can be bracketed with Blue and/or Amber white balance bias increments of approximately 5, 10 or 15 mireds.

Active D-Lighting. D-Lighting has proven a popular post-processing feature in Nikon’s recent digital SLRs, as well as some of the company’s point & shoot models. It’s a quick software process that attempts to overcome underexposed images, and bring detail out of shadows. An improved version of Active D-Lighting appeared in the Nikon D3 and D300, including optimization of image contrast, helping to prevent overprocessing of shadows and flattening of overall image contrast. The Nikon D7000 inherits this same Active D-Lighting setup, which features Extra-High, High, Normal, Low, and Off settings plus the ability to automatically choose the Active D-Lighting strength on the fly.

D7000 Active D-Lighting
Active D-Lighting Off	Active D-Lighting Extra-High

The effect of Active D-Lighting is highly dependent on the particular subject and lighting being shot, but for the most part is fairly subtle. The thumbnails above shows its effect on our Outdoor Portrait test, where you can see it opening up the shadows somewhat, while simultaneously holding back the highlights a little. We like that it’s generally subtle in its effect, as it’s so easy to overdo automatic tonal adjustments like this. (See the Nikon D7000 Image Quality tab for more detail on how well Active D-Lighting performs.)

Lateral Chromatic Aberration Correction. While other cameras have had lens distortion processing built-in, (notably the Olympus E-1, quite some time ago, and more recently many Panasonic cameras), none until Nikon’s D3 and D300 did the processing based on the distortion detected in the image. Past cameras (and most distortion-correction software) simply looked at which lens was mounted and perhaps the focal length if it was a zoom lens, and then applied a pre-set amount of correction; no image analysis actually took place. Nikon’s Lateral Chromatic Aberration correction offered a more sophisticated approach, thanks to the power of the camera’s EXPEED 2 processor, by actually analyzing each image after capture and fixing the chromatic aberration detected therein before saving the JPEG file. Cameras with high-resolution sensors place a greater demand on lenses, and hence Lateral Chromatic Aberration correction proves a useful feature on the Nikon D7000. There are no settings for this feature; it’s always enabled for JPEGs.

Nikon In-Camera CA Correction
200% Crop from Nikon D90, 18-105mm VR lens at 18mm Converted from Raw, no CA correction applied	200% Crop from Nikon D90, 18-105mm VR lens at 18mm Camera JPEG, Automatic CA correction applied

The crops above are actually taken from our review of the Nikon D90, but the D7000 uses the same technology, and the D90 crops above make good examples, because its 18-105mm VR kit lens had quite a bit of CA in the corners at the wide-angle end. The crop at left was taken from an image converted from a Raw file from the D90, enlarged 200% to make the colored fringing caused by the CA more evident. As you can see, there’s quite a bit of CA present. The crop at right is from a camera JPEG, shot at the same time under identical conditions. The difference in CA is pretty amazing; the camera did a remarkably good job of eliminating it. (Click on either image to see the full-resolution images as they came from the camera and Raw converter.)

Picture Control. Nikon has standardized its Picture Control system so that camera settings for sharpening, contrast, brightness, saturation, and hue can be finely adjusted and ported to other Nikon digital SLRs that support the system. The D3 was the first camera compatible with the option, and all Nikon SLRs since, including the D7000 follow the standard. The Nikon D7000 has six presets called Standard, Neutral, Vivid, Monochrome, Portrait, and Landscape, and up to nine custom presets can be defined, named, saved, and copied. Sharpness can be adjusted in ten steps, along with an Auto setting; contrast and saturation can be adjusted in seven steps or determined automatically, while for hue there’s a seven-step adjustment with no auto mode. Brightness is adjustable in three steps, and doesn’t affect exposure. There is also a five-step “Quick Adjust” setting which exaggerates or mutes the combined effect without having to adjust each slider individually. When Monochrome Picture Control is selected, Hue and Saturation are replaced by Filter Effects and Toning respectively. Filter Effects offers Off, Yellow, Orange, Red, and Green settings, while Toning offers B&W, Sepia, Cyanotype, Red, Yellow, Green, Blue Green, Blue, Purple Blue and Red Purple settings, with each of the colored settings offering seven adjustment steps. Of course, the Nikon D7000 also offers sRGB and Adobe RGB settings, in a separate Color Space option located in the Shooting menu.

Noise Reduction. The Nikon D7000 offers four levels of high ISO noise reduction: Off, Low, Normal, and High. When set to Off, minimal noise reduction is still performed at ISO sensitivities of 1,600 equivalent or above for JPEG images. High ISO noise reduction is not performed on Raw files. The Nikon D7000 also offers long-exposure noise reduction for exposures longer than 8 seconds. When set to On, the camera takes a second exposure for somewhere between half to the same duration as the actual exposure, but with the shutter closed, and subtracts the “dark frame” from the first, to further reduce hot-pixel and amp noise.

Release Modes. The Nikon D7000’s release modes are selected via the lockable release mode dial, which surrounds the base of the Mode dial, on the left of the camera’s prism / popup flash housing. Release modes consist of Single Frame (S), Continuous Low-speed (CL), Continuous High-speed (CH), Quiet Shutter-release (Q), Self-timer, Remote, and Mirror Up (MUP). The Nikon D7000’s Continuous High mode is rated by Nikon for up to six frames per second with the standard EN-EL15 battery pack, while Continuous Low allows one, two, three, four, or five frames per second as configured in Custom Setting d6. These figures apply only with a shutter speed of 1/250 second or faster, continuous servo AF, manual or shutter-priority auto exposure, and all other settings at their default values. The number of shots that can be captured in a Continuous-mode burst before the camera slows down varies, depending on the file type and image size, as well as the amount of fine detail in the scene for compressed filetypes. Nikon doesn’t provide a specification for the number of shots that can be captured before the buffer fills, but our tests with a deliberately difficult-to-compress image showed a capacity of ten Raw files (regardless of bit depth or whether JPEGs were simultaneously recorded), and a limit of 19 large/Fine JPEGs. Of course, the number of consecutive shots could also be limited by available memory card space, if your card(s) are nearly full.

Quiet Shutter-release is similar to normal Single Frame mode; however, the camera reduces noise by disabling the beep sound when the camera focuses, something which can be achieved in other modes through Custom Setting d1 in the Custom menu. It also delays lowering of the mirror until the shutter button is released, separating the noise of this operation from that of the mirror being raised and the shutter fired. It further reduces actuation speed of the mirror mechanism, and of the shutter recocking mechanism. The result is, indeed, a much quieter shutter sound. Self-Timer mode triggers the shutter a programmable delay (2, 5, 10, or 20 seconds) after the shutter button is pressed. The delay is set using Custom Setting c3, which also allows the D7000 to be programmed to capture anywhere from one to nine shots after the timer countdown has elapsed, with an interval of 0.5, one, two, or three seconds between shots. (Note that Self-Timer mode requires placing the bundled DK-5 eyepiece cap over the viewfinder to prevent stray light from affecting the exposure, and that Bulb exposures in Self-Timer mode will have a duration of 1/4 second.) Remote Control mode allows the D7000’s shutter to be triggered using the optionally available ML-L3 infrared wireless remote control unit. Three operating modes are possible, configured using the Remote Control Mode option in the Shooting menu. The D7000 can either trigger the shutter immediately that the button on the remote is pressed, after a two second delay has elapsed, or the mirror and shutter can be separated so that the first press will lift the mirror, and the second press will start the exposure. Finally, Mirror Up mode allows the mirror to be locked up with a first press of the shutter button or optional MC-DC2 corded remote release, and fires the shutter on a second press (or automatically, after a delay of 30 seconds), allowing camera shake caused by mirror slap to be reduced when shooting on a tripod. There is also an Exposure Delay option in Custom Setting d11 which delays the exposure one second after the shutter button has been pressed and the mirror raised.

Interval Timer Mode. Another useful feature on the Nikon D7000 that first appeared on more expensive models is Interval Timer mode, which facilitates time-lapse photography by taking a series of images at preset intervals. You can set the starting time for the series, as well as the time interval between shots, the number of shots to be captured after each interval (from one to nine), and the total number of intervals after which capture should cease (from one to 999). You can set hours, minutes, and seconds between each shot, and you can set a start time using 24-hour notation (HH:MM) from 00:00 to 24:00. (Make sure the camera’s timezone, date and time are correctly set!) You can also start immediately, using the “Now” option. This is a good way to capture a timeline of slower events, such as clouds passing across the sky, tidal changes, a flower opening, etc. As with the Self-timer mode, the bundled DK-5 eyepiece cap should be placed over the viewfinder to prevent stray light from affecting the exposure. Exposure, flash, Active D-Lighting and white balance bracketing are all possible during interval shooting, and all but the latter will override the shots per interval setting to capture the required number of bracketed exposures. (White balance bracketing will capture only the requested number of exposures, but then process each single exposure differently so as to create the separate WB-bracketed still image files.). Interval capture can be paused and resumed, or interrupted, through the camera’s menu system, if needed.

Multiple Exposure Mode. The Nikon D7000 allows either two or three exposures to be captured separately, and then combined in-camera into a single multiple-exposure image. This function allows effects similar to those that might have been obtained by intentionally winding back and re-exposing an image on a film camera. Up to 30 seconds is allowed between exposures, in addition to the time set in Custom Setting c4, “Monitor Off Delay” if Image Review is enabled – so a maximum of 10 minutes and 30 seconds between exposures is possible if the camera has sufficient battery life remaining. As they’re captured, the exposures can either be averaged by setting gain to “On”, or the brightness values from each exposure simply added up. The Multiple Exposure mode can be combined with the Interval timer function to automatically capture all the shots of the multiple exposure if desired, and it’s also possible to change white balance between exposures. Most other menu options are disabled during Multiple Exposure capture. Sadly, live view can’t be used to capture multiple exposures, so there’s no way to preview the effect and precisely align subjects by looking at the camera’s LCD display.

Retouch Menu. The Nikon D7000 has an extensive Retouch menu, which is starting to rival what basic image editing software packages can do on a computer – so much so that some users may not feel the need to use a computer for Nikon D7000 image editing at all. Retouch options include adjusting D-Lighting, red-eye correction, image cropping (trim), converting to monochrome, applying one of seven filter effects (including Skylight and Warm filters), adjusting color balance, image overlay for combining two Raw images into one JPEG, NEF (Raw) processing, resizing to small images (for TV, Web or email), “Quick Retouch” (boosts saturation / contrast and applies D-Lighting for contrasty scenes), straighten (rotates images +/- five degrees in 0.25 degree increments), distortion (barrel / pincushion) correction, a fisheye effect, color outline, a pencil-like color sketch effect, perspective control (correcting diverging verticals / horizontals), miniature effect (graduated blur at top and bottom of the frame to emulate reduced depth of field), and basic movie editing.

Raw Processing SubMenu. Raw-format files are pretty common on SLRs these days: They capture all the data as it comes from the sensor, usually without any processing applied. Manipulated on a computer with Raw-processing software, they let you make major white balance adjustments, minor exposure tweaks, and perform noise-reduction processing beyond what the camera can manage on its own. Like many of their other high-end SLRs, the Nikon D7000 also lets you do this sort of processing right in the camera, via a sub-menu off the Retouch Menu.

Nikon in-camera Raw processing
Here’s a screenshot from our D300s review showing a Raw file captured under a very yellow light source. While the D7000’s menu isn’t quite identical, it’s very similar.	Changing to a manual white balance setting lets us make a fresh JPEG with good color.

As seen in the screen shots above from our D300s, Nikon’s in-camera Raw processing menu gives you a lot of options, and the D7000 adds one more. As well as letting you change the JPEG quality, image size, white balance, exposure compensation (within +/-2 EV limits), Picture Control setting, High ISO noise reduction, and color space of a file, you can now adjust D-Lighting in three steps, or disable it together, before generating a new JPEG. (The original Raw file itself and any JPEG is left untouched; a new file is created.) This can be pretty handy if you need to make a quick change to white balance or minor exposure tweak in the field, before uploading an image to beat a deadline.

The images above were taken from our standardized test shots. For a
collection of more pictorial photos, see our
Nikon D7000 Photo Gallery
.

Not sure which camera to buy? Let your eyes be the ultimate judge!
Visit our Comparometer(tm)
to compare images from the Nikon D7000 with those from other
cameras you may be considering. The proof is in the pictures, so let
your own eyes decide which you like best!

Nikon D7000 Viewfinder

The Nikon D7000’s viewfinder is rated at 100% coverage, and is a bright, pentaprism design with 0.94x magnification at 50mm and -1 diopter, and a 19.5mm eyepoint. A diopter adjustment dial to the top-right on the viewfinder eyepiece offers a diopter adjustment range of -3 to +1.

The focusing screen is a fixed (non-interchangeable) type B BriteView Clear Matte Mark II screen. A framing grid (shown below) can be displayed on demand via a Custom menu setting. The active focus area can be highlighted in red or black (normally, the active area is highlighted in black only). There are three AF Point Illumination Custom settings available: Auto, which highlights when needed to establish contrast with the background; On, which always highlights, and Off, which disables the red highlighting.

The data readout below the focusing screen is similar to the D90, though the focus indicator has an enhanced range-finder function (the arrows indicate the direction to manually focus), the numerical field at the extreme right shows additional settings such as Active D-Lighting amount and AF-area mode when those features are adjusted, as well as some other minor changes. Compared to the D300S, the D7000’s viewfinder doesn’t show current metering mode, exposure mode or a full-time ISO display, though it does show some information the D300S does not, such as the no-card warning, B/W mode, range-finder arrows, tilt display, AF-area mode and Active D-Lighting amount.

The graphic (courtesy of Nikon USA) and table below shows what information is displayed in D7000’s viewfinder.

Viewfinder Test Results

Coverage
Very good accuracy with the optical viewfinder, excellent on the LCD monitor in Live View mode.

70mm, Optical	70mm, Live View LCD

The Nikon D7000’s optical viewfinder proved fairly accurate, with almost 98% coverage when measured with our Sigma 70mm f/2.8 test lens. This is very good for a non-pro model, but short of the 100% coverage Nikon claims. That said, though, it’s tough to frame to within a percent or two when squinting through a viewfinder eyepiece, so the actual accuracy could be a shade higher than we measured here. The resulting image is shifted vertically and slanted slightly to the left, which is unfortunately isn’t uncommon with optical viewfinders these days. The camera’s Live View LCD mode was extremely accurate, with essentially 100% coverage in our measurements.

Nikon D7000 Live View

The Nikon D7000 includes live view capability with one-touch activation, via a dedicated Live View switch on its rear panel, in very convenient reach of your thumb. Flick it at any time, and the mirror flips up, with the camera immediately entering Live View mode. A button at the center of the Live View switch is used to start and stop movie recording..

Live View Mode Displays

A nice feature of the Nikon D7000’s Live View mode is the optionally available, full information display. The Live View mode shooting info display shows you a lot of what you’d normally see looking through the viewfinder, yet manages to keep most of the information out of the way of the live image area. Information displayed includes current exposure mode, flash mode, AF mode, AF-area mode, Active D-Lighting mode, image size, image quality, white balance mode, metering mode, shutter speed, aperture, exposure compensation, ISO setting, shots remaining, face detection status, and battery status. In a separate overlay mode, it also shows microphone status and minutes/seconds of movie recording available at the current resolution and quality settings, and indicates the area of the frame that will be outside the movie crop by darkening it. There’s also a third info overlay that only shows basic exposure variables, as well as a grid overlay display, and a single axis (roll) electronic level display, all of which include small crop marks to indicate the movie capture area.

A very nice detail is that you can adjust the LCD monitor’s brightness (with no effect on the exposure / brightness of captured images) without needing to enter the camera’s menu system. This is achieved by holding in the Help / Protect button,and pressing the Up or Down arrow keys on the four-way controller. It’s a clever design, because when shooting in live view mode, you can find yourself often wanting to change the display brightness as you roam around taking photos in varying ambient lighting conditions. One thing we miss in the Nikon D7000, though, is the live histogram display that’s an option on the Nikon D3 and on some competing SLRs from Nikon’s rivals — even in some entry-level cameras.

Like the D90 and the company other subsequent DSLRs, the Nikon D7000 has only one type of autofocus method in Live View, and it’s not the traditional phase-detect AF. The D7000’s only option for autofocus in Live View mode is contrast detection. This is a fairly radical difference, compared to other camera makers.

Contrast-detect vs. Phase-detect Autofocus

By way of explanation, the phase-detect/contrast-detect distinction is one of the fundamental differences that separates digicams from digital SLRs, and is the core reason that SLRs focus more quickly. Contrast-detection autofocus involves looking at the image from a camera’s main image sensor and evaluating it to see how abruptly brightness values change from one pixel to the next. If an image is soft and fuzzy, brightness changes between adjacent pixels will be relatively slight, but if it’s sharply focused, they’ll be much greater. The point of ideal focus is found by moving the lens elements back and forth, and determining whether the contrast signal gets stronger or weaker. Achieving focus this way necessarily involves some back-and-forth hunting, which can take a while to accomplish. By contrast (no pun intended), phase-detect AF uses a system of prisms, lenses, and a secondary sensor to determine not only whether the image is in focus or not, but by how much it’s out of focus and in which direction. The camera can then adjust the focus setting to exactly the position needed, either in a single step, or perhaps with a quick secondary check once the initial focus adjustment has been made. As a result, phase-detect AF systems are generally much faster than contrast-detect ones.

The catch with phase-detect AF, though, is that it requires some of the light passing through the lens to be diverted to the focus sensor. This is fine in an SLR, when the mirror is down between exposures, as typically part of the mirror can be made to be partially transmissive, with the light passing through it deflected by a secondary mirror down to the AF sensor, usually located in the bottom of the mirror box. When the mirror is raised in Live View mode, though, light from the lens can’t get to the separate AF sensor. This accounts for the rather lengthy (and noisy) phase detection AF cycles in most Live View-capable SLRs: To focus the camera the mirror has to be dropped, focus determined, and the mirror raised again, adding several tenths of a second to the normal non-Live View shutter lag.

For example, when shooting with our Sigma 70mm f/2.8 prime lens, the Nikon D7000 has a shutter lag of only 0.238 second when using the optical viewfinder and a single AF point. This increases to an average of 1.95 seconds in Live View mode via contrast-detect, all other settings being the same. While it takes some time for the mirror to drop and re-open for phase-detect AF in Live View mode, the overall result can still be faster than when relying on contrast-detect autofocus. The Nikon D300 for instance can focus and capture a shot in 0.473 second in Live View mode using phase-detect AF, with the same Sigma lens.

With the above as background, you can see why we were surprised to find contrast-detect AF the only autofocus option available on the D90, and continue to be surprised that they’ve carried that limitation forward on the Nikon D7000. It’s a little bit faster than its equivalent in the D5000, but the Nikon D7000’s contrast-detect AF in Live View mode clearly still isn’t something you’re going to be using for sports shooting.

Nikon D7000 Live View Autofocus
As shown here, one advantage of contrast-detect AF is that you can put the AF box wherever you like it. (In this case, we’ve put it top center.) When focus is locked, the focus box changes from red to green.

One advantage of contrast-detect autofocus, though, is that you’re not restricted to focusing only on those areas where you happen to have an AF point. The Nikon D7000 lets you put the focus box anywhere in the frame when in Live View mode.

Nikon D7000 Live View Autofocus
Contrast-detect AF also opens the possibility of advanced modes like face-detection. The Nikon D7000 will change both the location and size of the face-detect box to accommodate changes in subject size and position, and can detect up to 35 faces in a scene simultaneously.

Besides the ability to position the AF area wherever you like it, the Nikon D7000’s contrast-detect AF in Live View mode also offers face detection. Up to 35 faces can be detected in an image in Face Priority mode, and the AF areas adjust to match the size of each face detected. The primary face-detect box shows yellow when not in focus, and green when in focus (after half-pressing the shutter button). The video clip at right shows the earlier D90 model tracking a live face while zooming in and out and panning around. While the Nikon D7000 can detect many more faces simultaneously, its face detection autofocus mode is otherwise very similar.

Face detection. Here’s a look at the D90’s face detection working with a live subject, which operates similarly on the Nikon D7000. Click to view/download 1.7MB MPEG-4 file.

Playing with face-detect autofocus in Live View mode, we were pleased to see that the camera not only tracked the faces, but was also intelligent enough to set focus based on the eyes of subjects, rather than on their noses or mouths. (In portrait work, the eyes are the most critical part of the face to render in sharp focus. Other parts of the face can be soft but viewers will regard the shot as properly focused if the eyes are crisp.)

Other Nikon D7000 Live View autofocus modes are: Wide Area, designed for hand-held shots of landscapes and other non-portrait subjects; Normal Area, designed for pin-point focusing using a tripod; and Subject Tracking. This mode is designed to track just about any selected subject as it moves around the frame — it need not have a face.

Manual Focusing in Live View Mode

During manual focusing, the Live View display on the Nikon D7000 can be magnified quite considerably, but it seems it’s not all that you might expect from the specifications. In Live View mode, pressing the magnifying glass button on the camera’s back lets you zoom in up to a maximum of 6.7x. The viewfinder image at this magnification isn’t sharp, though; it seems the camera is actually grabbing fewer pixels than that section of the sensor actually contains and then interpolating them to form the image. (You can check this by snapping a shot and then magnifying the resulting image to the same degree in playback mode. Doing this, you’ll find the image is quite a bit sharper than what you saw on the LCD in Live View mode.) While the magnified Live View display is still usable for focusing, it isn’t as sharp as it could be, nor as sharp as the Live View display on some of Canon’s SLR models sporting this feature.

Nikon D7000 Video Recording

In 2008, Nikon kicked off a new era for SLR cameras with the introduction of the D90, the world’s first DSLR with video recording capability. A little over two years later, high definition video recording has become a de rigueur feature available on a wide selection of SLRs at every price point, right the way down to the entry level. Although there are some important differences, the D7000’s video mode retains much of the DNA from Nikon’s prosumer D300S model, including some features that are rare even among more expensive cameras, let alone at this price point. Key among the changes is the availability of Full HD (1,080p) video capture, recorded using H.264/MPEG-4 AVC compression. Also key for many consumers will be the availability of contrast detection autofocusing with tracking capability during video recording, albeit with some adverse effects on video and audio quality. More experienced videographers will find intriguing possibilities in the D7000’s ability to control movie exposure manually, to accept an external microphone, and to adjust audio gain.

Nikon D7000 Video: Image Size, Frame Rate, and Encoding

Movie settings. Options include resolution, quality, frame rate (720p movies only), microphone sensitivity / muting, recording destination, and whether the D7000 should allow manual exposure control.

The Nikon D7000 records movies at three progressive scan resolutions: either 1,920 x 1,080, 1,280 x 720, or 640 x 424 pixels. The highest resolution 1,920 x 1,080 pixel mode is commonly known as Full HD or 1,080p, and has a 16:9 aspect ratio. Movies at this resolution are nominally recorded at a rate of 24 frames per second, although the precise capture rate is actually 23.976 fps. The intermediate 1,280 x 720 pixel resolution also has a 16:9 aspect ratio, and is better known as 720p. This offers a choice of two frame rates — either the same nominal 24 frames per second as in Full HD mode, or a secondary rate that varies depending upon the Video mode setting in the Setup menu. When the D7000’s video output is set to the North American NTSC format, the secondary movie recording rate is nominally 30 fps, and actually 29.97 fps. If switched to PAL format, the D7000 alternatively offers a 25 fps rate. Finally, the non-standard 640 x 424 pixel mode has an approximate 3:2 aspect ratio. With this standard definition mode, recording frame rates are fixed at either the nominal 30 fps for NTSC, or 25fps for PAL.

Regardless of resolution and frame rate, recording times are limited to 20 minutes or four gigabytes per clip, whichever limit is reached first. Nikon hasn’t explained the reason for the time limit as of this writing, but it’s likely due to sensor heating issues that might start to degrade image quality. The Nikon D7000 records movies using H.264/MPEG-4 AVC compression with Linear PCM audio, and stores them in .MOV files. Compared to the Motion JPEG format used by some cameras, H.264 is much more conservative of memory card space. It also avoids some of the severe image quality loss suffered by AVCHD cameras, when faced with significant amounts of change in image content between frames. (AVCHD uses a subset of the H.264 standard, which among other things mandates a limit in recording bandwidth, translating into a lesser ability to convey rapidly-changing detail.) The choice of H.264 comes with the requirement of greater processing power, though — not only from the camera when recording, but also when playing back or editing videos. The more sophisticated encoding used in the H.264 standard requires quite a bit of processor power to pull it apart and put it back together again, so frame-accurate editing of H.264 requires a fast processor and capable editing program.

Here’s a list showing what to expect for file sizes with the Nikon D7000’s video recording:

Nikon recommends using an SD card with at least a Class 6 rating to capture and playback movies.

Here are some examples of video from the Nikon D7000, showing typical results under daylight and night conditions.

Nikon D7000 Video Samples (shot with 18-105mm f/3.5-5.6 G kit VR lens)
1,920 x 1,080, 24fps, High Quality View on Vimeo | Download Original (15.0 seconds, 37.9 MB)	1,920 x 1,080, 24fps, Normal Quality View on Vimeo | Download Original (15.1 seconds, 23.3 MB)
1,280 x 720, 30fps, High Quality View on Vimeo | Download Original (13.1 seconds, 19.6 MB)	1,280 x 720, 30fps, Normal Quality View on Vimeo | Download Original (13.7 seconds, 13.7 MB)
640 x 424, 30 fps, High Quality View on Vimeo | Download Original (17.5 seconds, 12.6 MB)	640 x 424, 30 fps, Normal Quality View on Vimeo | Download Original (16.6 seconds, 8.2MB)
1,920 x 1,080, 24fps, Normal Quality View on Vimeo | Download Original (12.3 seconds, 16.9 MB)	1,280 x 720, 30fps, High Quality View on Vimeo | Download Original (13.7 seconds, 19.5 MB)

Nikon D7000 Video-Mode Focusing

Unlike some of Nikon’s digital SLRs, the D7000’s Live View mode — from which Movie recording is initiated — lacks the company’s separate Handheld and Tripod modes. Instead, autofocus during live view and movie capture is always performed using contrast detection autofocus, which operates based on data streaming from the image sensor — the same technique referred to as Tripod mode on some models. (On cameras that offer a choice, you can switch to Handheld mode to use the camera’s phase detection autofocus system before movie starts, so long you don’t mind a brief interruption of the live-view feed so that the reflex mirror can be lowered to let light reach the dedicated AF sensor. All of Nikon’s DSLRs, like the vast majority of interchangeable-lens cameras, must rely on contrast detection AF during video capture.) The good news is that, while not quite in single-lens direct view or compact camera territory, the D7000’s contrast detection autofocus is quicker than the average, among those offered by its peers. A measure of Nikon’s confidence in the D7000’s contrast detection performance can, perhaps, be read from the fact that it not only offers full-time AF during movie capture, but also provides an AF tracking function.

As in the earlier consumer-oriented D3100 model, the Nikon D7000’s contrast detection-based continuous autofocus mode carries a different name from its phase-detection equivalent. Dubbed Full-time Servo AF (AF-F for short, as opposed to AF-C / Continuous-Servo AF for phase detect), this function does involve some hunting around the point of focus, and can lag behind changes in your subject’s focus distance somewhat. If your subject is relatively static, you can instead opt for the Single-servo AF mode, which will still allow you to perform single autofocus operations during video capture by half-pressing the shutter button. You can, of course, also focus manually by appropriately setting the Focus-mode selector on the camera’s front panel (as well as that on the lens, if applicable).

The D7000 offers four AF-area modes for use during movie capture: Face-priority AF, Wide-area AF, Normal-area AF, and the aforementioned Subject-Tracking AF. The Wide and Normal-area modes are self-explanatory, providing two different focus area sizes, which can be manually positioned anywhere within the frame (and even moved during video capture.) Face-priority AF can identify up to 35 individual faces within the frame, and will select the closest subject among the group when adjusting focus. This individual will be indicated by a double-yellow frame on the D7000’s LCD panel. Finally, the Subject-tracking AF function allows you to manually position the point from which autofocus tracking should commence, and to start or stop the function by pressing the OK button when your subject falls under the AF point. The D7000 will then indicate the point at which it is currently tracking the subject with a focus frame that changes between either green to indicate a focus lock, or red to indicate that a focus lock hasn’t currently been attained.

Nikon D7000 AF Tracking Samples (shot with 18-105mm f/3.5-5.6 G VR kit lens)
1,920 x 1,080, 24fps, High Quality View on Vimeo | Download Original (16.8 seconds, 42.3 MB)	1,920 x 1,080, 24fps, High Quality View on Vimeo | Download Original (11.6 seconds, 30.2 MB)

Like most interchangeable lens cameras capable of AF during video, it should the D7000 has a tendency to pick up autofocus drive noise quite clearly in the audio track of its movie clips. This can at least be mitigated somewhat by use of an external microphone, and by adjusting the D7000’s three-step manual gain control, however. If AF noise is too much of an issue, you can of course switch to focusing manually, during a recording, and the true manual operation of AF on Nikon’s lenses means you can do this more or less silently, simply by being careful about turning the focus ring. (Some interchangeable lens cameras we’ve tested use “fly-by-wire” focusing, whereby the focus ring only instructs the camera to move the lens elements rather than moving them directly via a mechanical coupling. This can mean that focus operation is still audible, regardless of how slowly you turn the focus ring. With true manual operation of its lenses, the Nikon D7000 doesn’t have this problem, although it’s possible that third-party or older Nikon lenses might produce audible noise while their focus was adjusted.)

As we’ve noted in other SLR reviews, the good news with focusing for video is that you can get surprisingly good depth of field in video mode by stopping the lens down, thanks to the relatively low resolution of the video image. With a pixel resolution of only 2.1 megapixels in the Nikon D7000’s highest-resolution 1,080p “Full HD” mode, 0.9 megapixels in 720p HD mode, and just 0.3 megapixels in the standard-definition mode, images that would be unacceptably blurred as 16 megapixel still shots look perfectly fine as video frames. This not only provides greater depth of field at any given aperture, but is also more forgiving of diffraction limiting at very small lens apertures. Diffraction at small apertures means you’d usually want to avoid f/16 or f/22 for still images, but again, the results generally look perfectly fine at video resolutions. Bottom line, with the Nikon D7000’s lens set to f/16 or f/22 (assuming you’re shooting under fairly bright conditions), you’ll be surprised by how little focus adjustment is needed during a typical video recording.

Nikon D7000 Video Exposure Control

Nikon D7000: Aperture Control / Depth-of-Field
Aperture-priority, f/2.8
1,280 x 720, 30fps, Normal Quality View on Vimeo | Download Original (4.5 seconds, 4.5 MB)
Aperture-priority, f/22
1,280 x 720, 30fps, Normal Quality View on Vimeo | Download Original (4.3 seconds, 4.4 MB)

By default, the main exposure variables — shutter speed, aperture, and ISO sensitivity — all remain under automatic control when recording movies with the Nikon D7000. If the Manual Movie Settings option in the Movie Settings menu is set to On, however, you can either shoot movies in Aperture-priority mode, or control the exposure entirely manually. To do so, you must select either Aperture Priority or Manual exposure mode on the Mode dial, and then dial in your desired aperture, prior to entering Live View mode. With the live view active, you can still adjust the shutter speed and ISO sensitivity in Manual mode, but the aperture value remains locked until you exit live view. Confusingly, in Aperture priority mode, you can dial in a new aperture value with the live view active, but even if you do so before you start movie capture, the selected aperture value won’t take effect until you first exit and re-enter live view mode. If Manual Movie Settings is disabled, you can still adjust exposure variables, but these adjustments will only apply to still images; movies will be captured using Programmed auto-exposure. Likewise, if the Mode dial is in any position other than Aperture-priority or Manual, then the camera will behave as if it is in Program mode for the purposes of movie capture. Note also that Auto ISO sensitivity is not available when Manual exposure control is active, before or during movie capture.

When using Program or Aperture-priority exposure modes, you can adjust exposure compensation, but there’s another potential source of confusion here. Although during live view the camera will allow you to dial in an exposure compensation value within a +/-5EV range in 1/3 EV steps, the full extent of this range applies only to still image capture. For movie capture, the D7000 will confine itself within a range of +/-3EV from the metered exposure. Likewise, regardless of the metering mode selected, movies will always be recorded using Matrix metering, with the Center-weighted and Spot options available only for still image capture. A useful feature that you can take advantage of in Movie mode that can potentially make up for these design choices is the Autoexposure Lock button, which allows you to lock the camera’s metered exposure for as long as the AE-L button is held down, even after movie capture has already started. You can apply Nikon’s Picture Controls as well as specify the color space for movies, as long as they are selected before recording begins. This is useful if you’d like to for instance record in monochrome, or with more saturated colors, etc.

Nikon D7000 Video: Audio recording

Connectivity. The top jack is for composite video / mono audio output. Beneath is a Type-C Mini HDMI connector, which supports 1080i, 720p, 576p or 480p digital video with stereo digital audio, and offers both automatic resolution sensing, and Consumer Electronics Control support. At bottom left is a 3.5mm stereo microphone jack. The adjacent GPS port allows geotagging of still images, and isn’t applicable to video capture.

The Nikon D7000 has an internal microphone comprising three holes located directly beneath the D7000 badge on the camera’s front panel, a location which is a bit of a mixed blessing. Some competing cameras place the microphone on the top deck, where it has a greater tendency to pick up noise from the camera operator, and doesn’t directly face the intended subject. Unfortunately, it’s quite easy to accidentally cover the microphone with the index finger of your left hand, if you don’t use it to support the weight of the lens — something that’s more likely to happen when shooting with a light prime or kit zoom, than with larger, heavier lenses. As noted previously, the internal mic also has a tendency to pick up camera handling and autofocus drive noise on the audio track of captured movie clips, with the severity of this likely varying significantly depending on the videographer, and the lens model in use.

Thankfully, the D7000 also provides for an external mic, courtesy of a 3.5mm stereo input jack under a flap on the left side of the camera’s body. Simply switching moving to a shoe-mount mic with some form of shock mount can do wonders for your DSLR audio, while moving the mic off camera at a distance can completely resolve the issue. Another feature that can help resolve audio problems — and one that’s extremely unusual at this price point — is the adjustable sensitivity for the microphone. There are three sensitivity levels to choose from (Low, Medium and High), along with Auto gain, and Off settings. The settings apply to the built-in microphone as well as to an external mic. We found the D7000’s internal microphone to be quite sensitive when using Auto gain. It has no problem picking up even quiet conversation from across a room, as long as there are no background noises. Ah, but there’s the rub: The mic will pick up all sorts of background noise if you’re not careful. Given that most users will likely be using the D7000’s video recording for short clips of memorable moments, its tendency to pick up every sound is probably a positive feature. For those wanting the best audio quality, an external microphone will almost certainly prove a better choice, however, allowing selection of a microphone with the desired characteristics, as well as reducing the effects of noise from handling the camera body or using the focus and zoom mechanisms.

The D7000’s Linear PCM audio is recorded with a bit depth of 16-bits, and a sampling rate of 48 kHz, plenty enough for good quality audio.

Nikon D7000 Movie Recording User Interface

Movie editing. The D7000 allows you to trim the start and end of movie clips in-camera, as well as to extract a single movie frame as a still image.

The Nikon D7000’s movie recording functionality is accessed from Live view mode. To start and stop capture, you simply press the red center button in the multi-selector while live view is active. If set to control exposure manually, you can do so with the Mode dial in the M position for full manual control, or the A position for Aperture-priority control. With the Mode dial in any other position, or if Manual Movie Settings are disabled, movies will be recorded as if the Mode dial were in the Program position. As previously noted, if you want to control the aperture manually, you do have to set the desired value before capture starts. Autofocus can be set automatically or manually both before and during movie recording, and if available on the mounted lens, zoom can also be set manually at any time. Focus and zoom operation is likely to result in motor / handling noise being recorded on the audio track, although use of an external microphone that is distanced from the camera body should help minimize these issues.

The D7000 groups several settings related to video capture in a dedicated Movie Settings menu, accessed from the last page of the Shooting menu. One curious exception is the autofocus settings, which can instead be found from option a8 of the Custom Setting menu. Of course, the same AF settings can be accessed without needing to enter the menu system at all, using the AF-mode button and command dials in concert. Finally, the D7000 does offer limited in-camera movie editing functionality. You can select either a start or end point for a video clip, and save the resulting trimmed video as a new file, and it’s also possible to extract single frames from a video. These functions are accessed from the Playback mode’s Retouch menu.

Rolling Shutter Artifacts (“Jello Effect”)

Nikon D7000: Rolling Shutter Artifacts
1,920 x 1,080, 24fps, Normal Quality View on Vimeo | Download Original (6.0 seconds, 8.9 MB)
1,280 x 720, 30fps, Normal Quality View on Vimeo | Download Original (6.5 seconds, 6.1 MB)	640 x 424, 30fps, Normal Quality View on Vimeo | Download Original (4.9 seconds, 2.3 MB)
While it still showed some “Jello effect,” the Nikon D7000’s rolling shutter artifacts were *much* less pronounced than those of most SLRs we’ve tested.

Essentially every video capable digital SLR currently on the market exhibits motion-related distortions called rolling shutter artifacts. These are caused because the image data is captured and then read off the chip sequentially by rows, rather being captured all at once. In the case of the Nikon D7000, with its variable frame rate, this means that image data for the last row of a given frame is captured and read out anywhere from 1/24th to 1/30th second after the data for the top row was captured. The effect on moving objects is similar to that of a focal plane shutter in an SLR, but more pronounced, because the video frame is read out much more slowly than the slit of a focal plane shutter moves across the sensor.

For a camera that scans video frames vertically (as all do that we’re aware of), rolling shutter artifacts will be most noticeable for subjects that are moving rapidly side to side, or when the camera itself is being panned horizontally. Verticals in the scene will appear tilted to the right or left, depending on the direction of camera motion. As an example, consider the case of a camera being panned from left to right, with a flagpole or other vertical object in the middle of the scene when recording for a particular frame begins: If the top of the object was centered horizontally when the first line of the video frame is acquired, by the time the last line of the frame has been captured, the bottom of the object will have shifted to somewhere left of center: As a result, the vertical object would appear to be leaning to the right.

While our tests in this area aren’t quantitative, it seems clear to us that the D7000 shows *much* less rolling shutter than most of the competition, at least in bright light. We’ve yet to try it in lower light, but in reasonable ambient lighting we were actually pretty amazed at how well the picture held together even in the face of fairly rapid panning back and forth. Very nice!

Computer Requirements for Viewing HD Video

A typical computer these days has little trouble dealing with still images, but high-definition video can be another matter. Depending on the file format involved, it can take a pretty beefy computer to handle HD-resolution video playback without stuttering or dropping frames. The H.264/MPEG-4 AVC image compression used by the Nikon D7000 is one of the more compute-intensive formats, and its 1,920 x 1,080 (1080p) resolution means there’s a lot of data in each frame to deal with at full resolution. The net result is that you’ll want a relatively recent and powerful computer to play full-res high-def video files from the D7000 on your computer. At lower resolutions, the requirements will be more modest. You can, of course, view your movies on a TV — either via the composite A/V Output, or on an HDTV via the Type-C Mini HDMI output.

Nikon D7000 Modes and Menus

Nikon D7000 Exposure Modes

The mode dial on the left side of the D7000’s top panel provides access to its various exposure modes, with the usual Program, Aperture-priority, Shutter-priority, and Manual operating modes found on all Nikon DSLRs, plus an Auto mode, a total of seven Scene modes, and a Guide mode that helps beginners get to grips with their first DSLR. Here’s a list of what’s available:

• Program: Puts the camera in charge of aperture and shutter speed, though all remaining camera settings are available. You can vary the combination of aperture and shutter speed the camera has selected, while retaining the same exposure level, by rotating the Main Command dial. Called Flexible Program in Nikon parlance, this function is otherwise known as Program Shift, and is a great way to quickly bias your exposure without needing to switch to a Priority mode.
• Shutter Priority: The user controls shutter speed, from 1/8,000 to 30 seconds, while the camera sets the aperture value.
• Aperture Priority: The opposite of Shutter Priority mode, this mode lets the user control the aperture, while the camera sets the shutter speed.
• Manual: Gives the user complete control over the exposure (both shutter and aperture settings). Also provides access to the camera’s Bulb shutter setting (for exposures longer than 30 seconds), and x250 setting (which fixes the D7000 at its 1/250 second flash sync speed.)
• Auto: The camera sets almost everything. Used for snapshots, or users who just don’t want to be bothered with the details of how the camera will do its work. The AF-assist light will come on if needed, and the camera selects the AF point covering the closest subject.
• Auto (Flash Off): Nearly identical to the Auto mode, but the flash is disabled, and the camera will use higher sensitivities to capture images using available light. By default, the autofocus assist light will come on if needed, although this can be manually disabled. This mode is great for museums and other places where flash isn’t permitted, more natural-looking indoor shots, etc. (Do note though, that you may need to use a tripod, as the shutter speeds may still be on the slow side, depending on available light levels.)
• Scene: This single Mode dial position provides access to all 19 of the D7000’s scene modes. The Main Command dial is used to select the active scene mode when the Mode dial is in the Scene position, and the precise selection of restrictions and available functions varies depending on the Scene type selected. Available scene modes are Portrait, Landscape, Child, Sports, Close Up, Night Portrait, Night Landscape, Party / Indoor, Beach / Snow, Sunset, Dusk / Dawn, Pet Portrait, Candlelight, Blossom, Autumn Colors, Food, Silhouette, High Key, and Low Key.
• User 1: The Nikon D7000 allows most camera settings — including Custom settings, Exposure mode, and even aperture / shutter speed when in A/S/M modes — to be saved for later recall. Settings are saved through the Setup menu by first configuring the camera as desired, and then selecting the U1 or U2 memory positions from the Save User Settings option. Switching the Mode dial to the U1 position recalls User Settings group 1.
• User 2: Identical to the User 1 position, but recalls User Settings group 2.

Nikon D7000 Menus

Pressing the Menu button provides access to the camera’s full menu system. The D7000’s menus are arranged in a vertical tab structure, with icons for each tab along the left side. The multi-selector is used to navigate the menus.

The Nikon D7000’s Retouch Menu lets you modify images in-camera. NOTE that it always saves the results as a new image, so your original images are preserved.

This option lets you create a custom menu screen, with your most-used camera options on it. (This animation shows some menu items already added.)

EVOLUTION OF THE REVOLUTIONARY: THE NIKON D7000 D-SLR IS THE PREEMINENT
DIGITAL CAMERA FOR DEMANDING PHOTO ENTHUSIASTS

The D7000 Offers Creative Freedom with Advanced Features Such as a New 16.2 Megapixel DX-Format CMOS Sensor, Six FPS Shooting, 39-Point AF System and 1080p HD Movie with Full Time Autofocus

MELVILLE, N.Y. (September 15, 2010) – Nikon Inc. today introduced the new D7000 digital SLR camera designed to fulfill the needs of passionate photographers who demand exceptional performance, reliability, and unprecedented levels of control and versatility in a compact form factor. Engineered as an ideal balance of durability and functionality, the D7000 D-SLR features a multitude of new enhancements and updated Nikon technologies, which results in stunning photos and amazing full HD (High Definition) movies.

Continuing the tradition of innovative technology that began with the revolutionary D90, the first D-SLR to capture HD movie, the D7000 features a new 16.2 megapixel CMOS sensor with low-light ability never before seen in a DX-format (APS-C) camera. The new EXPEED 2 TM image-processing engine fuels the enhanced performance of the D7000 along with a new 39-point AF system and groundbreaking new 2,016 pixel RGB 3D Matrix Metering System to deliver amazing image quality in a variety of shooting conditions. Additionally, the D7000 D-SLR provides full 1080p HD movie capability with full time auto focus (AF), enabling users to capture their world with both striking still and moving images.

“The D7000 D-SLR creates a new class of Nikon camera by delivering exceptional quality, control and an innovative feature set; this is a camera that enables D-SLR users to achieve a true expression of their creative vision, while concentrating primarily on image quality above all else,” said Lisa Osorio, general manager of marketing at Nikon Inc. “When you combine the innovation of the agile D7000 with the exceptional and robust line of NIKKOR lenses and accessories, the potential for D-SLR photographers and filmmakers is limitless.”

Unparalleled Performance From Unrivaled Technologies
With its new 16.2-megapixel CMOS image sensor and Nikon’s new EXPEED 2 image processing system, the D7000 D-SLR delivers superior image quality with low noise. The EXPEED 2 image-processing engine combined with a 14-bit Analog / Digital conversion brings a new level of even tonal gradations while managing color, contrast, exposure, and noise resulting in brilliant image quality. EXPEED 2 also manages the D7000’s speedy 50-millisecond shutter response, blazing AF speed and rapid six frame-per-second (fps) burst speed for up to 100 images. 1

The D7000 D-SLR features an all-new 39-point AF System, which includes nine center cross-type sensors that operate with more than 60 NIKKOR lenses. The 39 points in the new Multi-CAM 4800DX AF module work together to provide superior subject acquisition and fast tracking capabilities, allowing photographers toconfidently capture a player stealing third from the sideline to fast-moving wildlife. Additionally, photographers can activate dynamic or single point AF, configurable in combinations of 9, 21 or 39 or a 21-point ring to match a variety of shooting styles and situations. Photographers can activate 3D tracking, which continuously follows moving subjects within the 39 AF points, highlighting the activated AF point in the viewfinder.

Utilizing Nikon’s exclusive Scene Recognition System, the camera analyzes subject information from a database containing more than 30,000 images to optimize focus, exposure and white balance. To assist in creating amazing imagery, the Scene Recognition System reads data from a groundbreaking 2,016-pixel 3D Color Matrix Meter RGB sensor that examines the scene’s brightness and color data then optimizes the camera’s performance prior to the actual exposure. Another revolutionary Nikon first, this system interprets scene data for improved control of light metering and i-TTL flash output. Additionally this new sensor allows for a new “Ambient” white balance setting which can be activated to allow warm rendering in Automatic White Balance.

Nikon Continues the Low-Light Fight
The D7000 D-SLR continues Nikon’s tradition of providing photographers the confidence to shoot in low-light, knowing they will capture high quality low-noise images. The camera’s native ISO range of 100-6400 affords the versatility to photograph in challenging lighting conditions, such as when indoors or in the evening. The ISO range can be expanded to a Hi-2 setting of 25,600, which was previously found only in Nikon FX-format territory. The resolution of the camera renders a pixel size of 4.78 μm, which allows more light to be gathered, resulting in a correctly exposed image that has less noise and finer grain.

Full 1080p HD Movies with Advanced Video Features
Building upon the popular D90 D-SLR, the Nikon D7000 captures breathtaking full 1080p HD movies with full-time autofocus and manual exposure control. To keep critical HD focus, users can choose to engage a variety of AF functions, including face priority to track up to 35 human faces, subject-tracking and normal or wide-area autofocus.

Advanced movie features also allow exposure adjustment on the fly while recording. The D7000 D-SLR offers variable frame rates and resolutions, and can record 1080p at a cinema-like 24 fps, or a web-friendly 720p at either 24 or 30 fps for up to 20 minutes per clip. Once recorded, users are able to edit and trim video clips in the camera to save time in post production. Whether utilizing a wireless or hot shoe mounted microphone, sound can be recorded via the stereo microphone input for professional audio results.

To further simplify movie shooting, Live View is activated by a single dedicated switch, and HD video recording is achieved by pressing a single button. The D7000 D-SLR also incorporates a built-in HDMI output CEC compliant (Consumer Electronic Control) that allows users to connect it to a HDTV and playback with most HDTV remote controls.

By adding versatile NIKKOR lenses to the equation, photographers can create a variety of photo perspectives to video such as isolating subjects with a shallow depth of field, and recording in low-light conditions. Combining the D7000 D-SLR with NIKKOR lenses also delivers the sharpness essential for HD video, and Nikon’s innovative Vibration Reduction (VR) II technology helps to eliminate the effects of camera shake.

No Compromise: Enhanced Build Quality, Durability and Usability
The compact design is lightweight enough for a full days use, but has a reassuring heft that hints at Nikon’s reputation for reliability. The durable camera body consists of a magnesium-alloy top and rear covers and a 150,000 cycle-rated shutter system. Additionally, the D7000 D-SLR is dust and moisture sealed and features Nikon’s dust reduction system to remove image-degrading particles from the image sensor. Among the well laid out ergonomics, users will immediately notice a new Mode Dial that eschews traditional Scene Mode icons for more advanced manual functions and two user-defined settings (U1, U2) to adapt to a users shooting style on the fly. Placed under the control wheel is a Release Mode dial, which allows access the burst modes, timer, or the Quiet Shutter, to soften the cameras operation when shooting in sensitive environments such as a ceremonies or nature.

When framing lush landscapes or tight telephoto shots from afar, users will appreciate the large, bright glass pentaprism optical viewfinder has approximately 100% frame coverage and approximately 0.94x magnification. The three-inch, 921,000-dot super-density LCD monitor with 170-degree viewing delivers bright, crisp image playback and precise Live View and movie shooting.

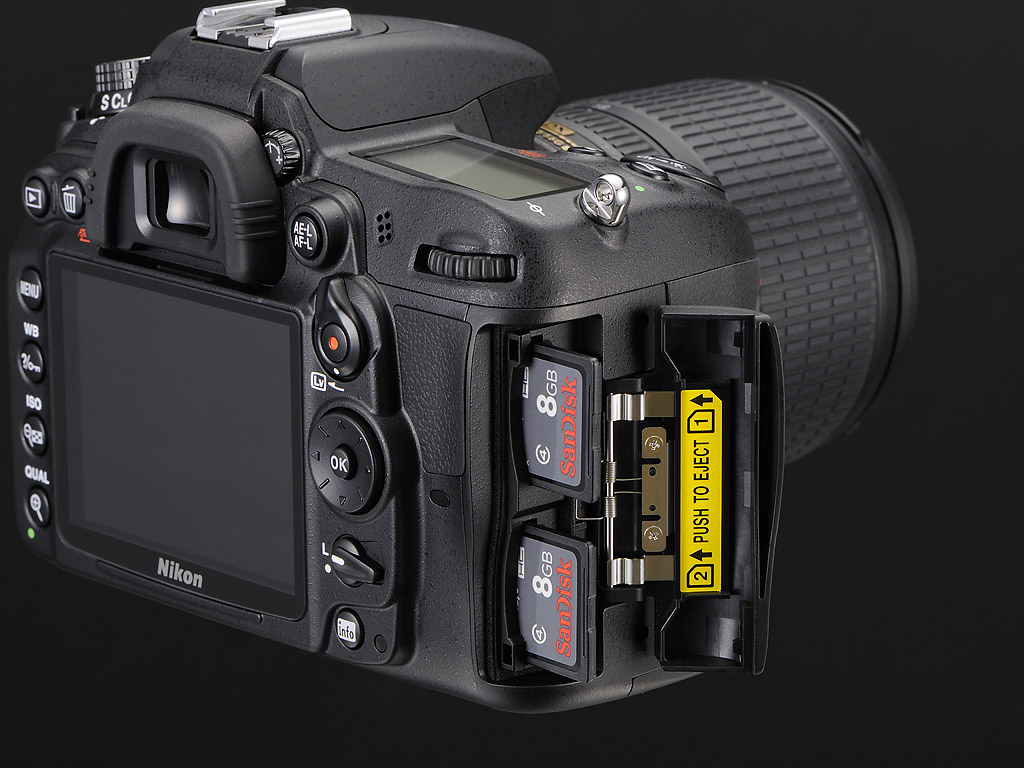

The D7000 D-SLR features twin SD card slots with SD, SDHC, SDXC memory card compatibility that offers a several recording options including designating separate NEF (RAW) JPEG and movie files. The built-in i-TTL Speedlight flash offers coverage for lenses as wide as 16mm and has Wireless Commander support so users can choose how to light their subjects. The D7000 was designed to provide maximum performance with minimized power usage and also employs a new EN-EL15 battery which enables up to 1050 shots when fully charged.

Nikon Technologies That Empower and Inspire
The D7000 D-SLR contains many features aimed at empowering the user with creative freedom including the ability to process RAW images directly in the camera, and add in special effects using the retouch menu. Among the many editing options are color filters, distortion control for a fisheye effect, perspective control for a miniature effect, or a new color sketch filter that creates a sketch-styled image. As always, manipulated images are saved as copies while the original is retained.

The Picture Control system also allows the choice for Standard, Neutral, Vivid, Monochrome, Portrait, or Landscape settings to apply a personal look and feel to their pictures, and it’s versatile Scene Modes let them choose from Portrait, Landscape, Child, Sports, Close-up or Night Portrait for stunning results even in challenging conditions.

Price and Availability
The D7000 D-SLR camera will be available throughout the United States beginning mid-October 2010 at an MSRP* of $1199.95 for body only and $1499.95 for body and lens outfit that includes the AF-S DX Zoom-NIKKOR 18-105mm f/3.5-5.6G ED VR lens. For more information, please visit www.nikonusa.com.

About Nikon
Nikon, At the Heart of the Image™. Nikon Inc. is the world leader in digital imaging, precision optics and photo imaging technology and is globally recognized for setting new standards in product design and performance for its award-winning consumer and professional photographic equipment. Nikon Inc. distributes consumer and professional digital SLR cameras, NIKKOR optics, Speedlights and system accessories; Nikon COOLPIX® compact digital cameras; COOLSCAN® digital film scanners; 35mm film SLR cameras; Nikon software products and Nikon sports and recreational optics. For more information, dial (800) NIKON-UX or visit www.nikonusa.com, which links all levels of photographers to the Web’s most comprehensive photo learning and sharing communities.

###

*MSRP (Manufacturer’s Suggested Retail Price) listed only as a suggestion. Actual prices are set by dealers and are subject to change at any time
