Olympus 7-14mm f/2.8 Pro M.Zuiko Digital ED

—
Special update: The Olympus 7-14mm ƒ/2.8 Pro lens was awarded a Lens of Distinction in the Best Zoom Lens category of our 2015 Lenses of the Year awards!
—

Offering similar, high-quality metal construction, weather sealing and the pull-back manual focus ring as the previous two M.Zuiko Pro lenses, the Olympus 7-14mm is a serious lens with a focus on quality and performance for the advanced and professional MFT photographer.

The lens, like many ultra-wide zooms, has a very bulbous front lens element and as such has a fixed, permanent lens hood — and no filter threads. The lens retails for $1,299 and ships with a soft case and press-on lens cap.

Sharpness

For a bright ƒ/2.8 lens that’s also an ultra-wide angle zoom, the Olympus 7-14mm comes through with flying colors in the sharpness category for the most part. Though the corners are noticeably soft at ƒ/2.8 the wider you zoom, the center sharpness throughout the zoom range is tack-sharp, even wide-open. As with numerous other lenses, stopping down some improves corner sharpness — around the ƒ/5.6 mark was shown to be the sweet spot for the best sharpness across the frame in our testing. Diffraction-related softness is present, but it only really makes a notable impact at around ƒ/16-ƒ/22. Overall, sharpness is really great stopped down, just don’t expect crisp corners at f/2.8, especially when zoomed out to 7mm.

Chromatic Aberration

The Olympus 7-14mm lens does a decent job overall at controlling chromatic aberration, particularly towards the center of the frame. Being such a wide lens, it’s not all that surprising to find some CA present in the corners of the frame, and we do see some bright magenta fringing on high contrast edges in the far corners of our VFA test images. It’s mostly noticeable at the wider focal lengths, but some CA is still visible in the corners at all focal lengths, both at ƒ/2.8 and stopped down. The center, on the other hand, looks great at all focal lengths and apertures in terms of CA control with very little to no visible CA.

Shading (”Vignetting”)

For such an ultra-wide lens, vignetting, even at the widest focal length, is not all that severe. Yes, there is some vignetting, and at all focal lengths, too, with 7mm showing the most over the range of apertures. Wide-open, we measured a bit under 0.75EVs of light falloff in the corners at 7mm, with the other focal lengths displaying a bit less (10-14mm show at or under 0.5EVs, for example). Stopping down to ƒ/4, we see a noticeable drop in vignetting pretty much across the board. 7mm still shows more vignetting at this point than the other focal lengths, which are now hovering around 0.5EVs of light loss. Around ƒ/8, most focal lengths are displaying around 0.25EVs of light falloff, with a couple of the longer focal lengths dipping slightly under that amount.

Distortion

Geometric distortion control is quite impressive, despite the lens’ ultra-wide design. As with vignetting, some distortion was not unexpected, especially at the wider focal lengths, and indeed there’s some barrel distortion the wider you get on the lens. We see the most “severe” distortion at 7mm with just a little over +0.5% at maximum, but we see a smooth decline in distortion as you zoom out to 14mm — which shows little to no distortion at this point.

Focusing Operation

Like other Olympus M.Zuiko Pro lenses, the Olympus 7-14mm is very fast to autofocus, taking well under a second to slew from minimum to infinity focus. It features Olympus’ MSC (“Movie & Still Compatible”) electrical focusing mechanism, for full-time AF in both stills and video that’s also very quiet so as not to introduce focusing noises in video recordings. The MSC system does away with a geared system for mechanically moving the lens elements when focusing, which can cause unwanted noise. Instead, it uses a linear motor drive system for fast, quiet actuation.

Manual focusing is also available on this lens, both as full manual focus as well as full-time manual focus override while AF is enabled. When using Olympus cameras, users can set the camera to “S-AF+MF,” and after half-pressing the shutter and achieving AF, you can turn the focus ring and make manual focus adjustments. This also works with Panasonic cameras as well, when “AF+MF” is enabled. For full-time manual focusing, pulling back on the focus ring clutch engages manual focus (and displays focus markings).

Macro

The Olympus 7-14mm is certainly not designed for traditional macro photography, but with a close-focusing distance just shy of 8 inches, it’s very good for dramatic close-up shots.

Build Quality and Handling

Designed for professional use, the Olympus 7-14mm ƒ/2.8 M.Zuiko Pro is built accordingly, with an all-metal construction that’s splash-proof, dust-proof and freeze-proof. The front element is weather-sealed, as is the lens mount with a rubbery gasket to form a tight seal against the camera. In total there are 11 different weather seals throughout the lens.

In terms of size and weight, the new Olympus 7-14mm lens has a sizable heft to it compared to the average Micro Four Thirds lens, though we wouldn’t go so far as to call it large or heavy. It’s certainly a rock-solid, well-built lens, though. The fixed lens hood and larger, bulbous front element make it a bit longer than the Olympus 12-40mm, for example, but it’s still rather compact for an ultra-wide, constant ƒ/2.8 lens — especially considering its DSLR-sized equivalents.
There’s a slight front-heaviness to it, but otherwise it feels great in the hand and balances pretty well on larger Micro Four Thirds cameras like Olympus E-M1. For smaller cameras, like our Panasonic GX1 test camera, it’s a bit off-balance, but a two handed hold is comfortable.

Like Olympus’ other M.Zuiko Pro zoom lenses, the 7-14mm lens sports two metal rings, one for zoom and the other for focusing. Both rings rotate very smoothly. The zoom ring has a nice, solid, mechanical feel with a good amount of rotational resistance (but not too much). This lens, while an internally focusing lens, is not an internally zooming one. While the permanent lens hood protects the front element at all focal lengths, the front element does extend outwards the wider you get.

With its electronic focusing system, the focus ring will rotate forever in its “AF” position, but when pulled into Manual Focus mode, the lens helpfully reveals a focus distance scale and introduces hard stops at either end (with about 90 degrees of rotation).

In terms of the optical construction, the new Olympus 7-14mm ƒ/2.8 Pro is comprised of 14 elements in 11 groups, including 2 aspherical ED, 1 double-sided aspherical element, 1 standard aspherical element, 3 Super ED, 1 ED and 2 HR elements. It has a 7-bladed circular aperture that stops down to ƒ/22.

An interesting feature that this lens shares with other M.Zuiko Pro lenses is the programmable “L-Fn” button near the lens mount along the upper left side. Standing for “Lens Function”, the L-Fn button can be configured using compatible Olympus cameras to set various options — and options not even related to the lens itself. You can program it to toggle adjustments such as white balance or RAW, but it can also be set as an AF-stop button. The placement is convenient as it’s right near or under your thumb when using the proper camera holding technique to support the lens in your hand. (Note: Despite being part of the Micro Four Thirds system, the L-Fn button won’t function with Panasonic cameras, although you can mount this lens on those cameras.)

Alternatives

The Olympus 7-14mm ƒ/2.8 Pro is currently the widest rectilinear lens available for the Micro Four Thirds system with a constant ƒ/2.8 aperture, so there really isn’t a direct competitor at the time of this review. The most similar alternative, however, would be the equally wide Panasonic 7-14mm ƒ/4. Though not as bright with its ƒ/4 aperture, the lens offers the same range of focal lengths. Sharpness is very good, though its CA, vignetting and distortion characteristics aren’t as nice as the Olympus’. At around $700, however, it’s much more affordable than the Olympus 7-14mm.

Another alternative is the very compact Olympus 9-18mm ƒ/4-5.6 lens. Though not as wide or as bright, the 9-18mm lens is pretty sharp, though not as sharp as the 7-14mm. It is, however, much smaller, lighter and also much more affordable with a list price around $700.

For other alternatives, you’d have to reach back for older Four Thirds-mount DSLR lenses and use an adapter. Olympus offered both a 7-14mm ƒ/4 as well as a less wide 11-22mm ƒ/2.8-3.5 lens. However, in addition to the need for an adapter, these lenses are much larger than comparable Micro Four Thirds lenses and will autofocus more slowly since they were designed for Four Thirds DSLR cameras.

Conclusion

Though it’s still a small collection of lenses at this point, Olympus’ M.Zuiko Pro line continues to impress with high quality performance and excellent build quality. The new Olympus 7-14mm ƒ/2.8 Pro lens steps in as the premiere ultra-wide zoom lens for the Micro Four Thirds system, offering performance and quality for advanced and professional shooters alike. The high cost of the lens — at around $1,300 — is certainly a discouraging factor for budget-conscious MFT shooters, but this is, at this point in time, a unique lens that offers a versatile ultra-wide focal length range, a bright ƒ/2.8 aperture, weather-sealing, great build quality, as well as excellent image quality.

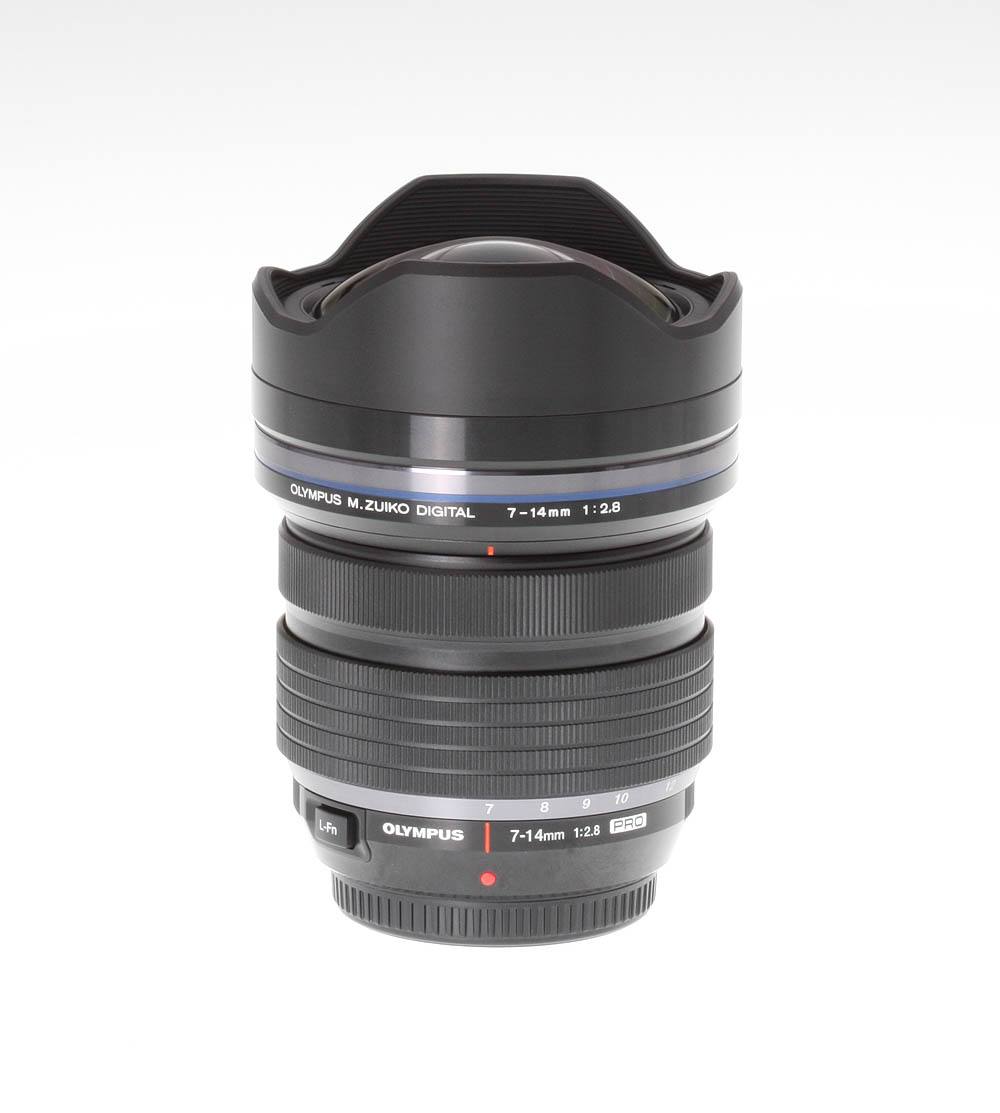

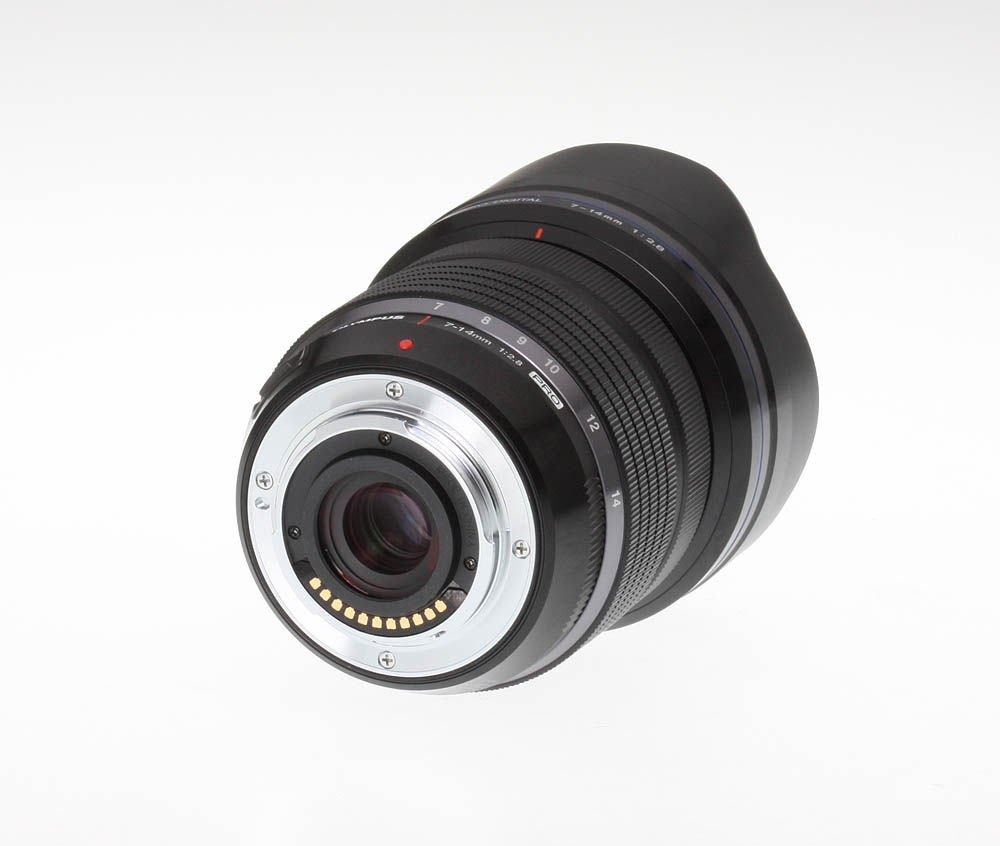

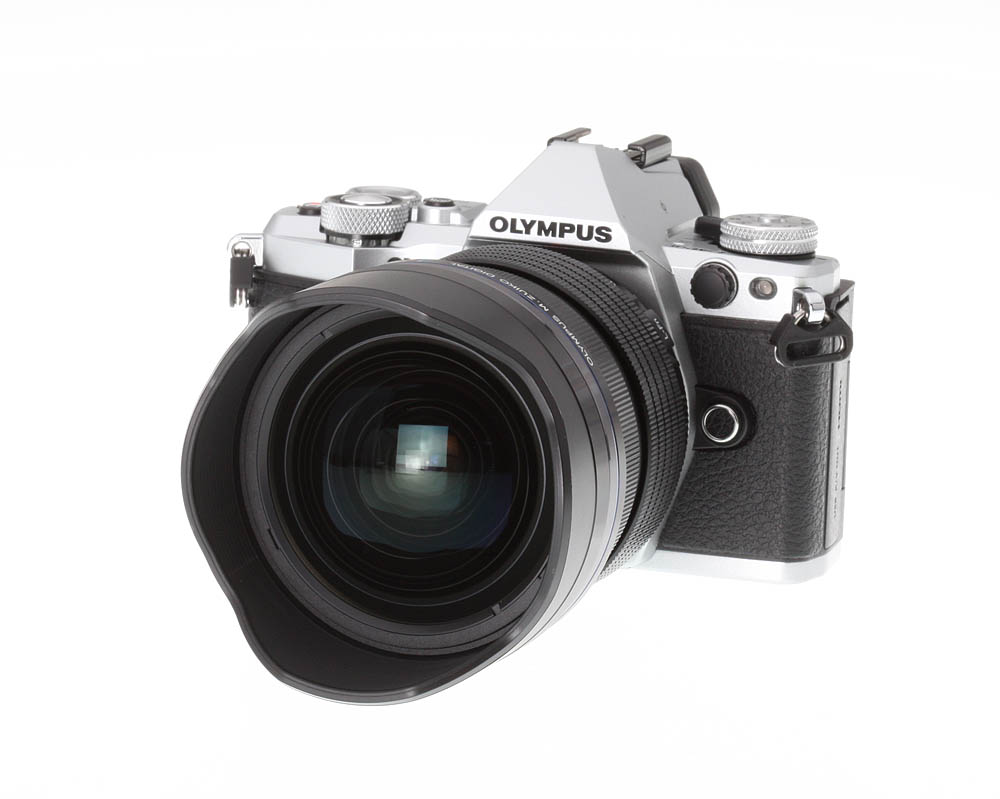

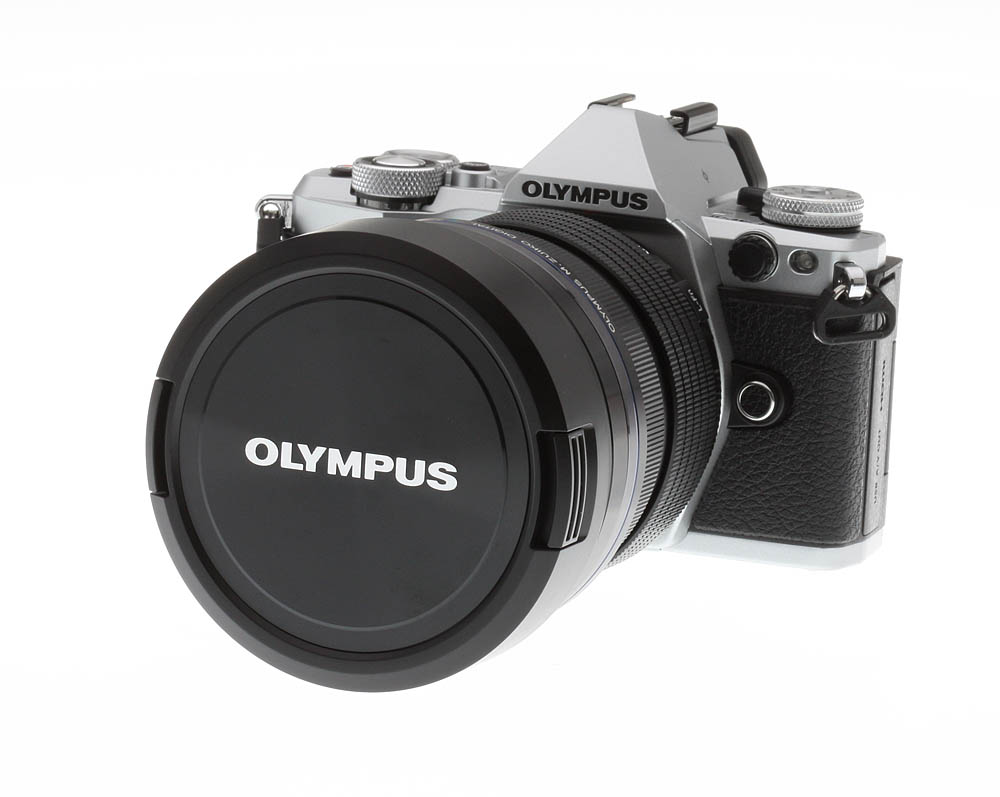

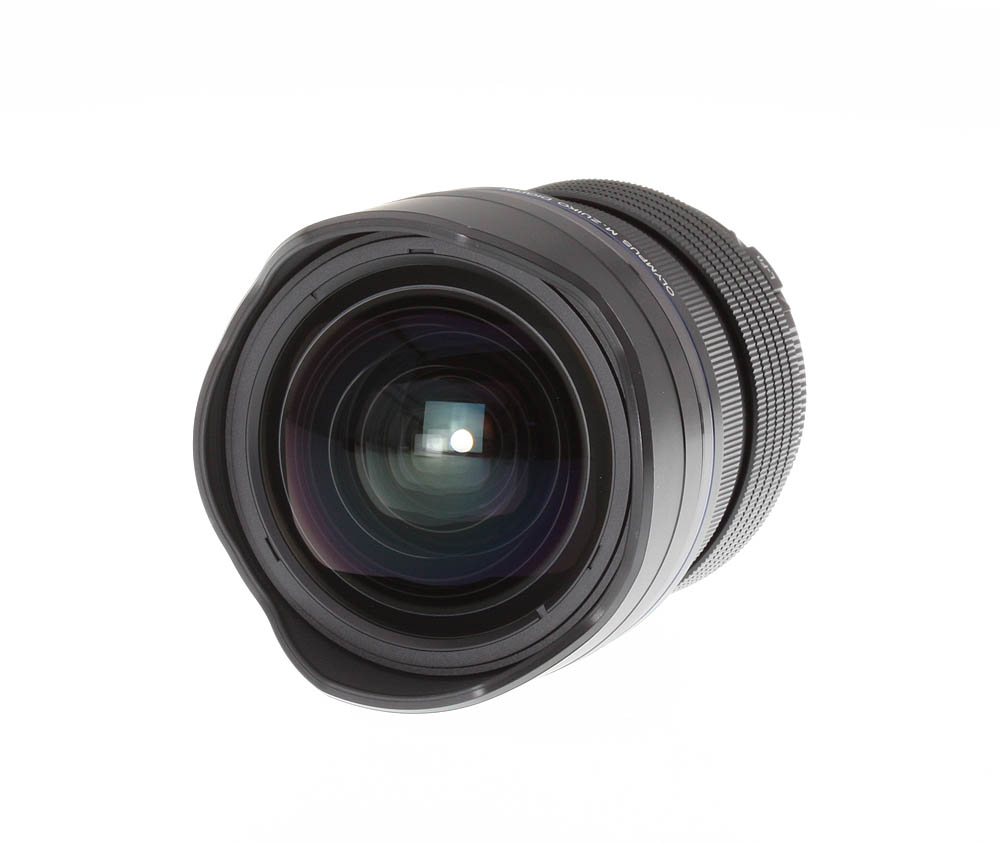

Product Photos

Sample Photos

The VFA target should give you a good idea of sharpness in the center and corners, as well as some idea of the extent of barrel or pincushion distortion and chromatic aberration, while the Still Life subject may help in judging contrast and color. We shoot both images using the default JPEG settings and manual white balance of our test bodies, so the images should be quite consistent from lens to lens.

Still Life shot

VFA target

As appropriate, we shoot these with both full-frame and sub-frame bodies, at a range of focal lengths, and at both maximum aperture and ƒ/8. For the ”VFA” target (the viewfinder accuracy target from Imaging Resource), we also provide sample crops from the center and upper-left corner of each shot, so you can quickly get a sense of relative sharpness, without having to download and inspect the full-res images. To avoid space limitations with the layout of our review pages, indexes to the test shots launch in separate windows.

(From Olympus lens literature) The M.ZUIKO DIGITAL ED 7-14mm F2.8 PRO is the ideal lens for wide-angle shooting needs in any condition. This premium lens includes weather sealing in 11 locations, enabling use in rain and snow, or even on the beach, where other lenses may not be able to withstand ocean spray or dust penetration. At 534 grams, or just under 19 ounces, the M.ZUIKO DIGITAL ED 7-14mm F2.8 PRO is about 45 percent lighter than similar competitor products, eliminating heavy equipment that may slow the user down.

The lens also includes premium close-up shooting capabilities, thanks to the minimum working distance of just 7.5cm, offering extremely sharp capture capability, even at the very edges of an image. Three Super ED lenses, one ED lens and two EDA lenses help to minimize peripheral chromatic aberration, while the ZERO (Zuiko Extra-Low Reflective Optical) Coating aids in minimizing ghosting. The lens also boasts an L-Fn button with 27 assignable functions and a Manual Focus Clutch with built-in Hyper Focal Scale. The M.ZUIKO DIGITAL ED 7-14mm F2.8 PRO lens comes with a fixed lens hood and pinch-style lens cap LC-79 for added protection.

When used in conjunction with core OM-D technologies, like 5-axis image stabilization, the M.ZUIKO DIGITAL ED 7-14mm F2.8 PRO opens the user up to new possibilities for long exposure hand-held shooting.

The M.ZUIKO DIGITAL ED 7-14mm F2.8 PRO lens will be available in June 2015 (black) for an estimated street price of $1,299.99 (US) and $1,599.99 (Canada).
