Panasonic 42.5mm f/1.7 ASPH POWER OIS LUMIX G

—
Special update: The Panasonic 42.5mm ƒ/1.7 was awarded a Lens of Distinction in the Best Prime Lens category of our 2015 Lenses of the Year awards!
—

The Panasonic 42.5mm ƒ/1.7 ASPH POWER OIS LUMIX G lens was announced in February of 2015, and hit store shelves later that year in May. With its fast aperture speed of ƒ/1.7 and effective field of view of 85mm (in 35mm film terms, thanks to Micro Four Third’s 2x crop multiplier), the lens is aimed squarely at portrait shooters.

The lens is compatible with Micro Four Thirds bodies, ships with a round lens hood and is available now for around $400.

Sharpness

Our testing shows the Panasonic 42.5mm ƒ/1.7 to be extremely sharp – as in, practically tack-sharp from its widest aperture of ƒ/1.7. It stays sharp until diffraction limiting sets in at ƒ/8, but you probably won’t notice any reduction in sharpness until ƒ/16, and only then if you have particularly sharp eyes. At ƒ/22 there is a generalized softness across the entire frame, but even then, it’s almost negligible.

Chromatic Aberration

Again, according to our test results, chromatic aberration is kept well in control across all apertures. We do note some purple fringing in areas of high contrast when the lens is used at ƒ/1.7, but it’s not excessive.

Shading (”Vignetting”)

When the lens is used at ƒ/1.7, the corners will be a half-stop darker than the center of the image; at any other setting, corner shading is negligible.

Distortion

There is a trace amount of barrel distortion (+0.1%) in images shot with this lens, but it is barely perceptible, and if you truly need your straight lines straight, easily correctable in most image processing software.

Autofocus Operation

Autofocus on the 42.5mm ƒ/1.7 is powered by a stepping motor system, which focuses very quickly and quietly. In our tests, we found it to be very fast and accurate, taking well under one second to rack from minimum focusing distance to infinity, with no hunting for focus needed. Attached 37mm filters won’t rotate on the lens during autofocus, which is always nice.

Of course, this lens supports manual focusing as well, and it’s a pleasure to use, with a nice, wide focus ring that’s very smooth to rotate. The focus ring is electronic, and not a mechanical focus system seen on your typical DSLR lens; this means that the ring can rotate forever (no hard or soft stops at minimum focus and infinity). Since it’s electronic, how quickly you rack focus between near and far-away subjects depends on how fast or how quickly you accelerate the rotation of the focus ring. You can focus very precisely with small, slow rotations or quickly rack through the range with faster rotations.

Macro

The lens isn’t designed for macro work, but with its 0.2x magnification and close-focusing range of 31cm (just over a foot), it’s not bad in this regard.

Build Quality and Handling

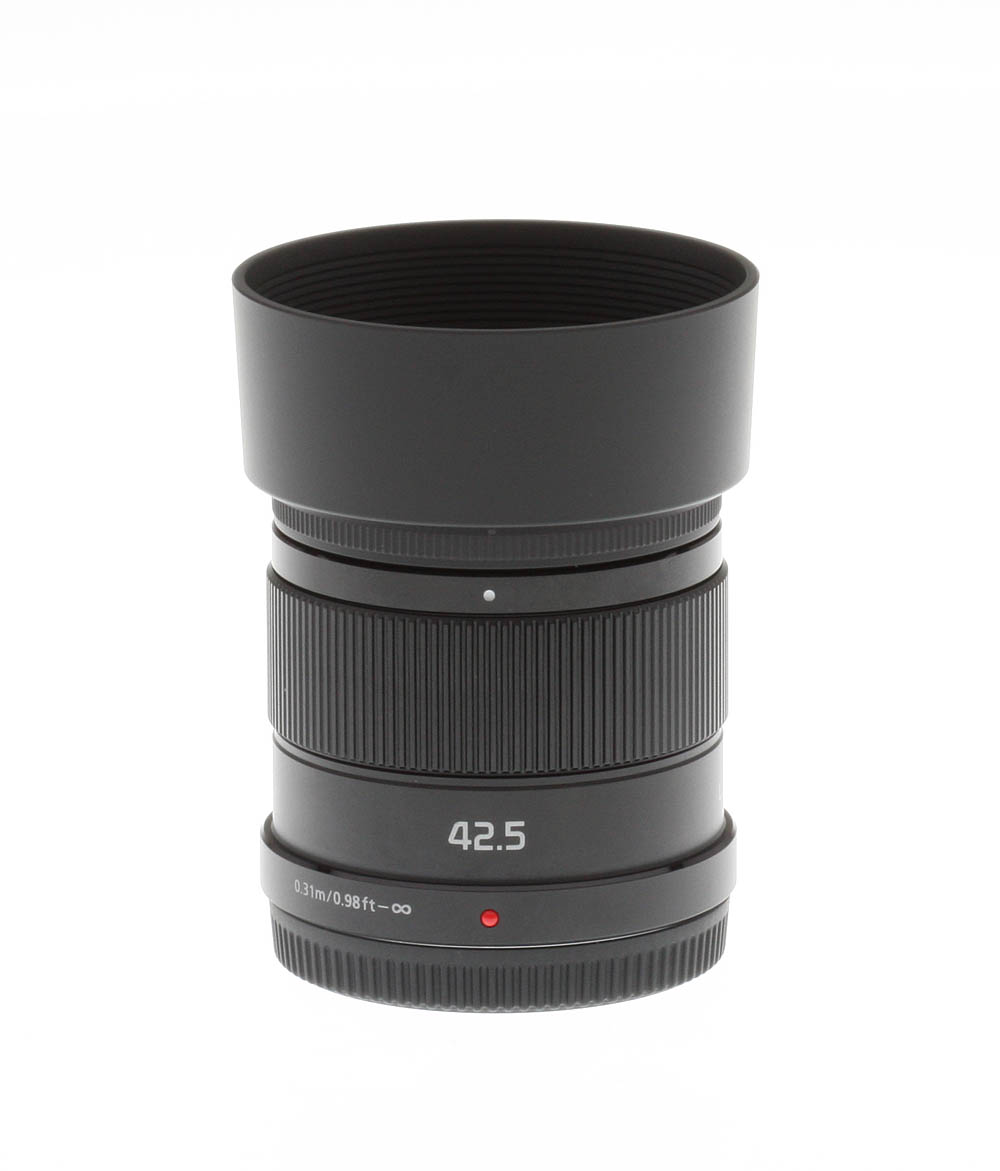

The 42.5mm ƒ/1.7 is very lightweight at just 130 grams (just over 4 ounces). The lens features 10 elements in 8 groups, including 1 aspherical element, and seven rounded diaphragm blades make up the aperture for nice background blurring. It is pretty svelte in its design — there are no buttons, indicators or scales. The only point of operation is the manual focus ring. There is a 37mm thread for filters, and a bayonet mount for the included round lens hood. The lens also comes with a removable decorative ring, which attaches to the bayonet mount, when the hood is not in-use. This ring is great for getting lost, though, so it’s probably easier to just remove it and keep the hood on instead.

The manual focusing ring has a plastic ribbed texture and is a generous 3/4” wide. The ring will turn forever in either direction, not being limited at the infinity or close-focusing distances. The front element does not turn during auto or manual focus.

The lens features image stabilization, though Panasonic makes no claim on its performance. In our testing, we see about two and a half stops of hand-holding improvement; see our IS Test tab for more detail.

Alternatives

Olympus 45mm ƒ/1.8 ED M.Zuiko Digital ~$400
It’s slightly less sharp, and chromatic aberration is just slightly more evident, and it doesn’t feature image stabilization; however, the Olympus bodies feature sensor-shift stabilization, making this feature moot.

Panasonic 42.5mm ƒ/1.2 ASPH POWER OIS LEICA DG NOCTICRON ~$1,600
If you absolutely need the extra light-gathering ability of a ƒ/1.2 lens, then this is the lens for you – at four times the price.

Conclusion

With super sharp results, a small package and a low price point, what more can you want? For portrait shooters in the Micro Four Thirds mount, this is an excellent lens.

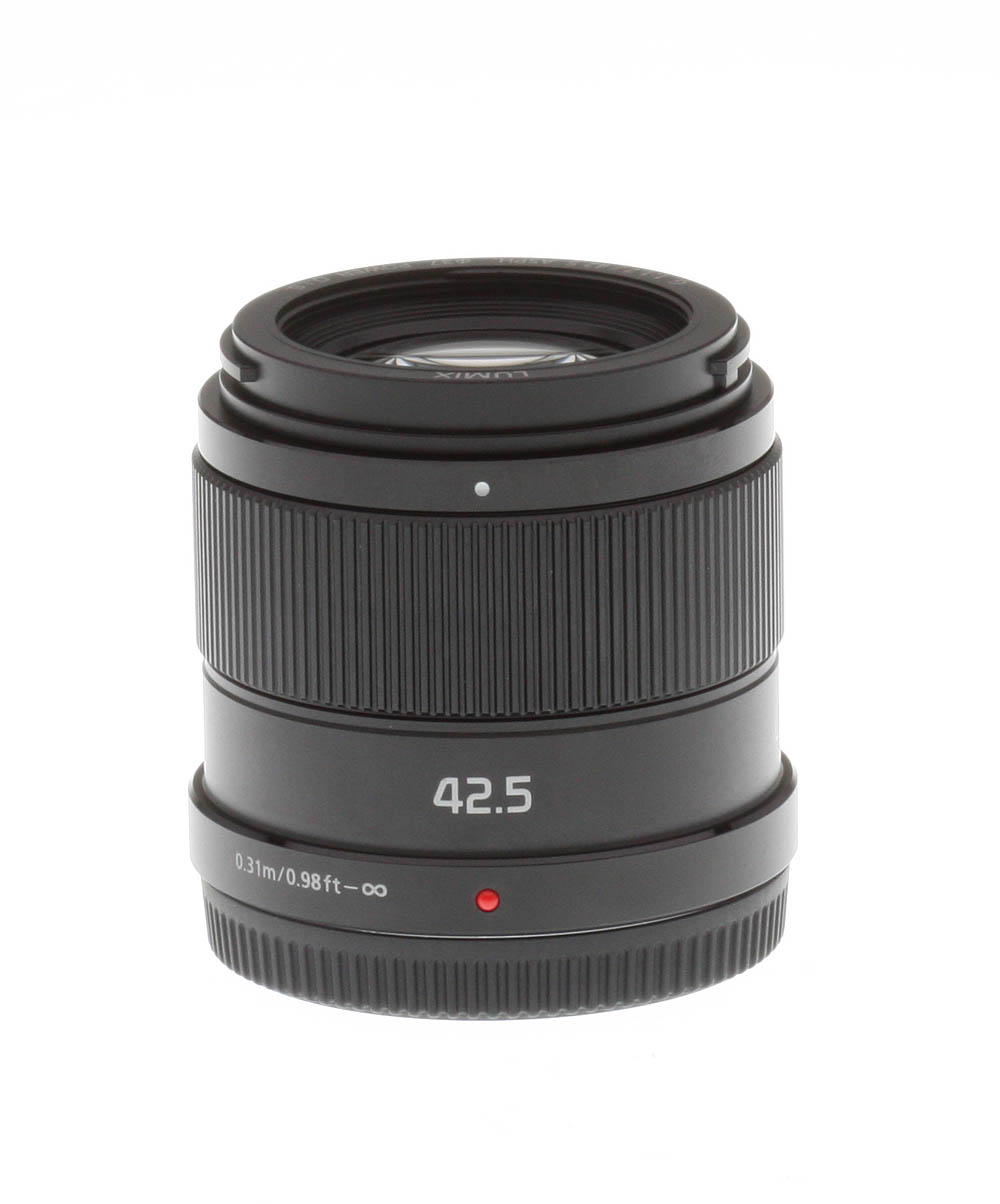

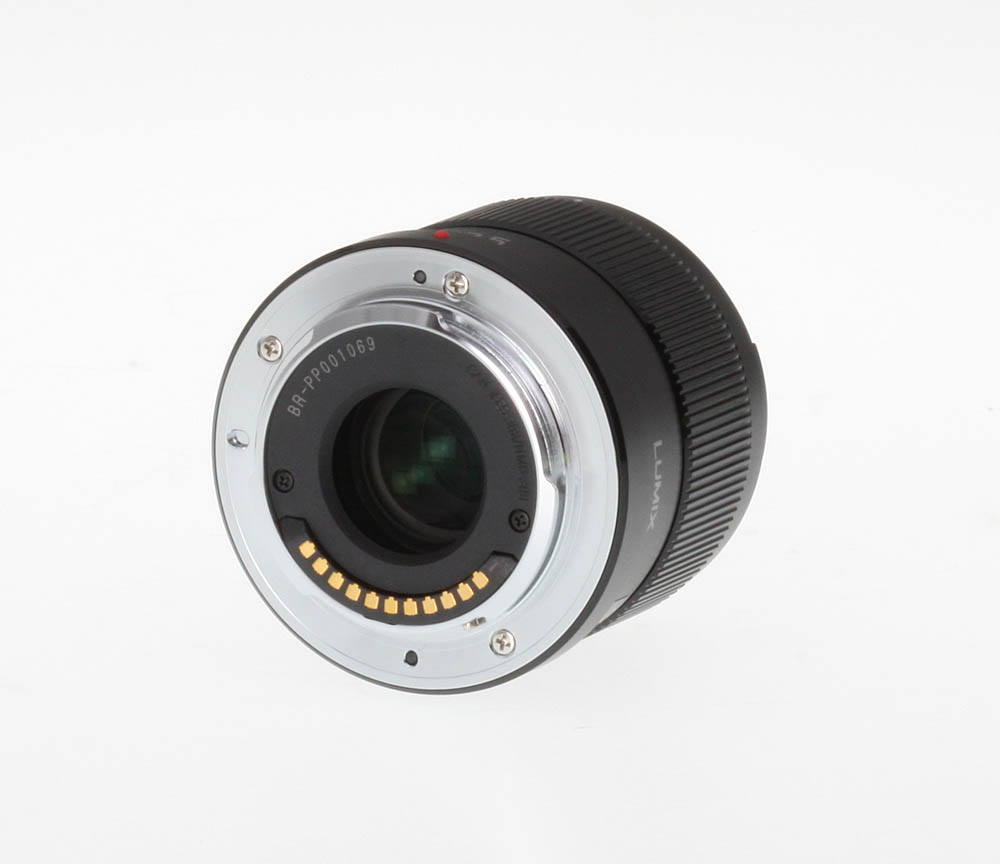

Product Photos

Sample Photos

Click here for Real-world Gallery Images on our Flickr page!

The VFA target should give you a good idea of sharpness in the center and corners, as well as some idea of the extent of barrel or pincushion distortion and chromatic aberration, while the Still Life subject may help in judging contrast and color. We shoot both images using the default JPEG settings and manual white balance of our test bodies, so the images should be quite consistent from lens to lens.

Still Life shot

VFA target

As appropriate, we shoot these with both full-frame and sub-frame bodies, at a range of focal lengths, and at both maximum aperture and ƒ/8. For the ”VFA” target (the viewfinder accuracy target from Imaging Resource), we also provide sample crops from the center and upper-left corner of each shot, so you can quickly get a sense of relative sharpness, without having to download and inspect the full-res images. To avoid space limitations with the layout of our review pages, indexes to the test shots launch in separate windows.

(From Panasonic lens literature) H-HS043 — a new F1.7 42.5mm portrait lens

The new 42.5mm lens is available in sharp metallic black and silver, and delivers beautiful defocus to help you add more artistry and creativity into your photography. Offering a 42.5mm middle-telephoto focal distance (35mm camera equivalent: 85mm equivalent to 85mm on a 35mm camera), a high speed F1.7 aperture, and a versatile focusing distance of 0.31m, the lens can deliver portraits with a rich stereoscopic effect as well as close-ups with beautiful defocus.

The lens’ POWER O.I.S. system effectively compensates unwanted blur caused by handshake — not only small, fast movements but also large, slow ones — helping you get the results you want, even in low light situations. The POWER O.I.S. system, alongside the 240fps Drive AF, delivers stable framing and precise focusing every time.

Most people tend to think of image stabilization as being mainly for telephoto lenses. While it’s true that their longer focal lengths tend to magnify the effects of camera shake, image stabilization can provde a very useful assist at wider angle focal lengths as well; anyone who’s ever tried to blur the image of a waterfall, while keeping the surrounding landsape tack-sharp knows exactly what I’m talking about.

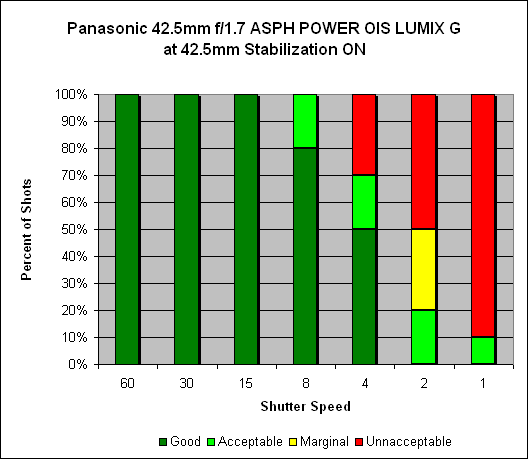

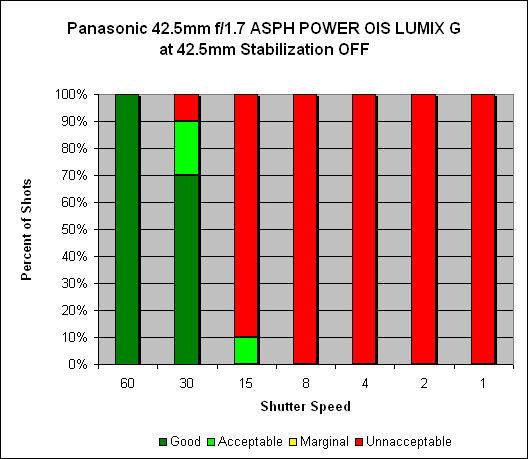

With the POWER OIS system turned off, we see 100% sharp shots hand-held at the 1/60s shutter speed, which is in keeping with the one-over-focal-length rule of thumb (70% sharp at 1/30s). Activating POWER OIS, we have 100% sharp shots down to the 1/15s shutter speed, and 80% at 1/8s, giving us around 2.5 stops of hand-holding improvement.

Mouse over this chart to show results with IS activated.

IS systems tend to provide more benefit to less-stable shooters than very steady ones, so most users will see the same or greater amounts of shake reduction as we measured here. You can read more about our IS test methodology here: SLRgear IS Test Methodology, v2.
